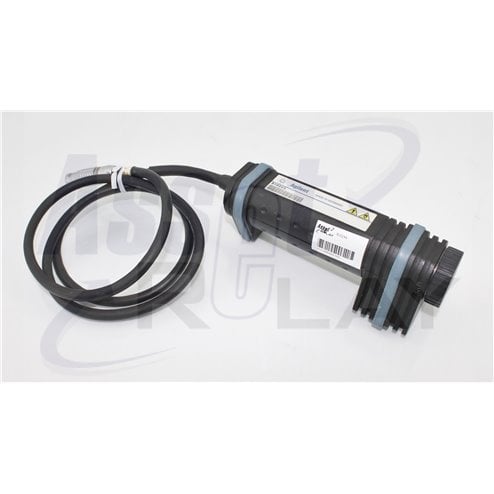

Agilent 81624A InGaAs Optical head

The Agilent 81624A is a 5mm InGaAs optical head that connects to the 81618A or 81619A interface plug-in module that fit the 8163, 8164 and 8166 multichannel mainframe series. The Agilent HP 81624A InGaAs sensor element covers a wavelength range of 800 to 1700nm and offers a dynamic range of +10 to -90dBm. Many different connectors are available for the 81624A optical head.

Click the PDF Specification for further information.


Read moreShow less
USD $4,795.00
5 1
,
5/ 5
Yes, we have more than 5 in stock
Condition
Used
Reference:
81624A
Brand:
Description
Agilent 81624A Optical Head

Specifications at a glance for the 81624A

  • Wavelength Range: 800 to 1700 nm
  • Detector Type (Sensor Element): InGaAs
  • Detector Size (diameter): 5 mm
  • Power Range: +10 to -90 dBm
  • Uncertainty at Reference Conditions (-20 dBm): +/- 2.2% (1000 to 1630 nm)
  • No Analog Output


Additional Information

The Agilent optical power heads are specially designed for low PDL, low spectral ripple and high return loss and are used for optical component test. The heads come with a magnetic D-shape adapter and provide a safe stand. The optical heads have to be operated with the single (Agilent 81618A) or dual (Agilent 81619A) interface modules.

These modules are controlled in any configuration in any of the mainframes 8163B, 8164B and 8166B. A highly flexible connector interface palette addresses connectorized, bare fiber or open beam application


- Applicable Fiber Type: Standard Single-mode And Multimode max. 100 um core size, NA < 0.3

- Linearity: CW +10 to -70 dBm (1000 - 1630 nm)

- Connector Type Options:

  • 81000FA: FC/PC connector adapter
  • 81000KA: SC/PC connector adapter
  • 81000PA: E-2000 connector adapter
  • 81000VA: ST/PC connector adapter
  • 81003LA : LC/PC connector adapter
Read moreShow less
Product Details
81624A
