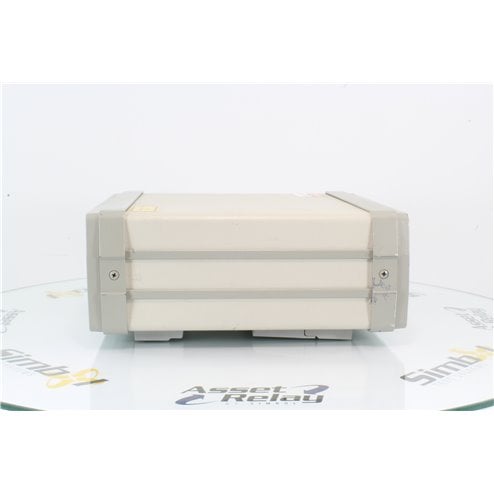

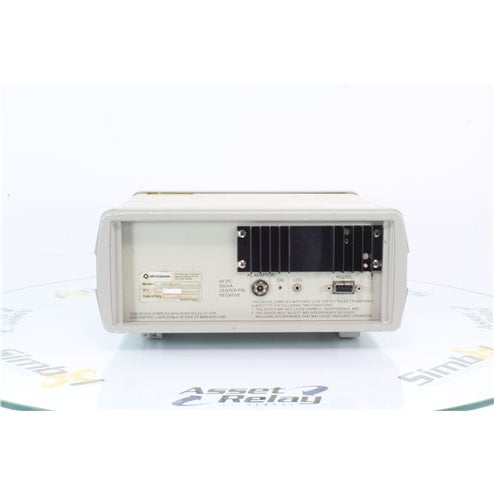

JDS RM3750-1FA7 Backreflection  Meter

JDS RM3750-1FA7 Backreflection Meter

5 1
,
5/ 5
The JDS / JDS Fitel / JDSU RM3750 Backreflection Meter is a portable, direct-display instrument used for the measurement of backreflection, insertion loss, and power of connectors, components, and systems. The meter come only with APC connectors (LC, SC & FC adapters are sold separately) for the detector port and can be equipped with one or two built-in laser sources: 850, 1310 and 1550 nm for Multimode units and 980, 1310, 1480, 1490, 1550, 1625 & 1650 nm for singlemode units. This Singlemode JDS RM3750+1FA7 comes with 1310/1550 nm sources c/w FC/APC connectors.

Click the PDF Specification for further information.

Yes, In-Stock !

JDSU RM3750-1FA7 Backreflection Meter


Specifications of RM3750-1FA7

  • Operating wavelength: 1310 +/- 10 nm and 1550 +/- 10 nm
  • Backreflection range: 0 to -75 dB
  • Detector type: 2 mm InGaAs
  • Power Range: 0 to -80 dBm
  • Display: 16 character LCD
  • Remote interface: RS-232 (standard)
  • Fiber Type: Singlemode 9/125 um
  • Connector Type: FC/APC
  • Remote Interface: RS-232

One optical interface connector adaptor is needed from below list. It is not included in pricing

AC101: FC

AC103: SC

AC118: LC



NOTE: Previous model was RM3750B, the RM3750B is perfect alternative for RM3750+1FA7
JDS
RM3750-1FA7
