JDS RM3250-1FA8 Backreflection Meter

The JDS/JDS Fitel/JDSU RM3250 Backreflection Meter is a portable, direct-display instrument used for the measurement of backreflection, insertion loss, and power of connectors, components, and systems. The meter come only with APC connectors (LC, SC & FC adapters are sold separately) for the detector port and can be equipped with one or two built-in laser sources: 850, 1310 and 1550 nm for Multimode units and 980, 1310, 1480, 1490, 1550, 1625 & 1650 nm for singlemode units. This Singlemode JDS RM3250+1FA8 comes with 850 nm sources c/w FC/APC connectors.

Click the PDF Specification for further information.

Read moreShow less

Request Pricing

5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
RM3250-1FA8
Brand:
Description

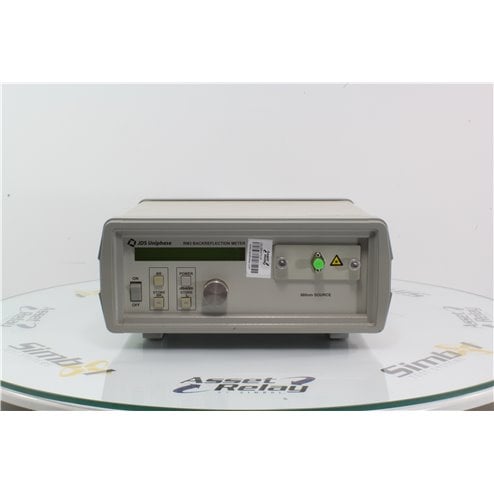

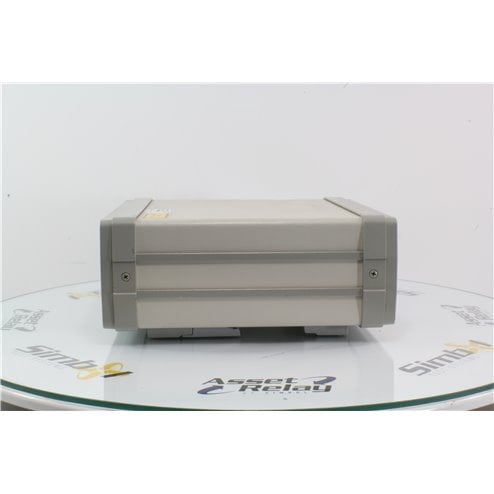

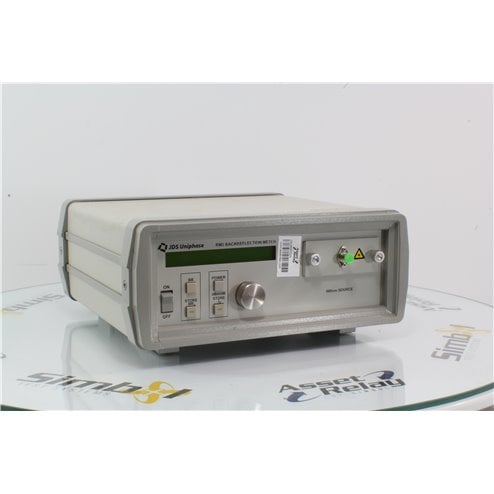

JDSU RM3250-1FA8 Backreflection Meter

Specifications of RM3250-1FA8

  • Operating wavelength: 850 nm ± 10 nm
  • Backreflection range: 0 to -65 dB
  • Detector type: 2 mm InGaAs
  • Power Range: 0 to -80 dBm
  • Display: 16 character LCD
  • Remote interface: RS-232 (standard)
  • Fiber Type: Singlemode 9/125 µm
  • Connector Type: FC/APC
  • Remote Interface: RS-232

One optical interface connector adaptor is needed from below list. It is not included in pricing

  • AC101: FC
  • AC103: SC
  • AC118: LC
Read moreShow less
Product Details
RM3250-1FA8
