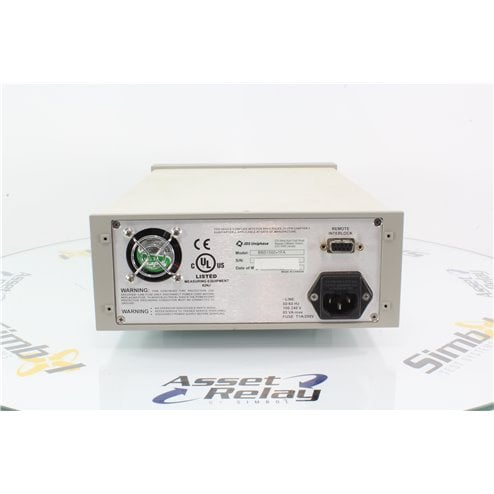

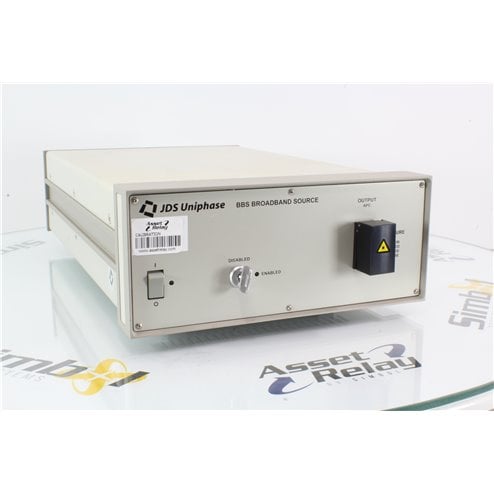

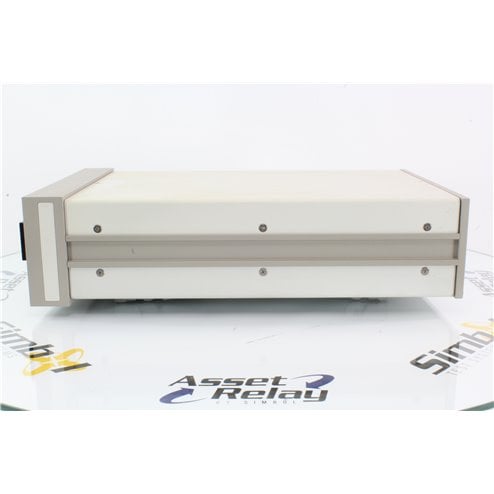

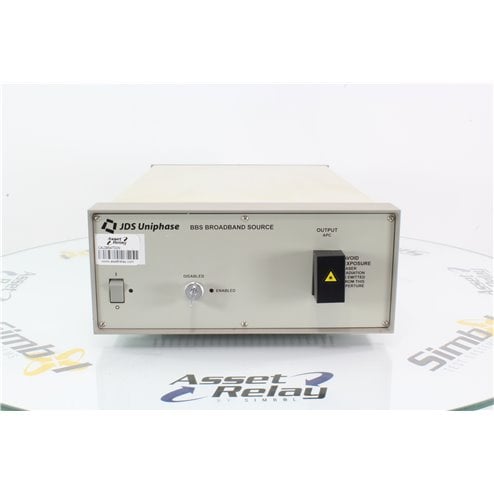

JDS BBS1560+1FA Broadband Source

The JDS BBS1560+1FA Broadband Source is a C+L-band optical broadband light source designed for fiber optic testing and telecommunications applications. It provides flattened output power spectra, high spectral stability, and high output power density, making it ideal for optical component spectral tests and system compliance tests. Key Specifications: Operating Wavelength: 1530-1600 nm (C+L-band) Total Output Power: 10 dBm / 10 mW Spectral Gain Flatness: Optimized for uniformity Output Isolation: High stability for precision testing Connector Type: FC/APC Compact Benchtop Design: Ideal for lab environments This broadband source is commonly used in optical measurement systems, sensors, and imaging applications.
Read moreShow less
USD $1,500.00
5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
BBS1560-1FA
Brand:
Description

JDSU BBS1560+1FA Broadband Source

Specifications of BBS1560+1FA

  • Operating wavelength range: 1525-1610 nm
  • Minimum total optical power: > 20 mW
  • Maximum spectral gain flatness: 2.5 dB
  • Gain flattened range: 1526 to 1603 m
  • Total output power stability: 0.02 dB
  • Minimum output isolation: 45 dB
  • Output connector: FC/APC
Read moreShow less
Product Details
BBS1560-1FA
