HP 83480A Digital Communication Analyzer
HP 83480A Digital Communication Analyzer

HP 83480A Digital Communication Analyzer

Agilent 86100A Infiniium DCA
Agilent HP 83480A Digital Communication Analyzer is a modular platform that accepts up to two plug-in modules. Integrated optical channels: include calibrated reference receivers for 155, 622, 1063, 1250, 2488, and 9953 Mbit/s SDH/SONET, Fibre Channel, or Gbit Ethernet transmitter test.

Read moreShow less
USD $150.00
5 1
,
5/ 5
Yes, we have more than 5 in stock
Condition
Used
Reference:
83480A
Brand:
HP
Description

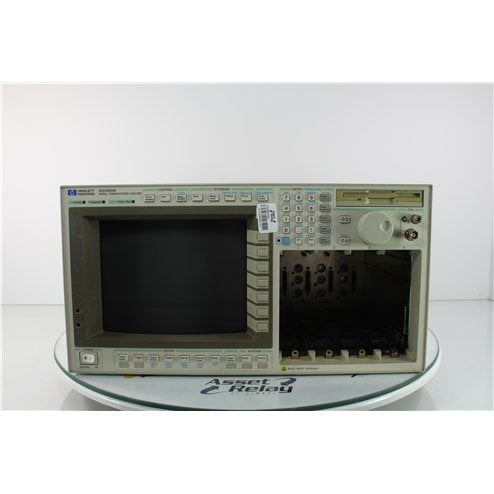

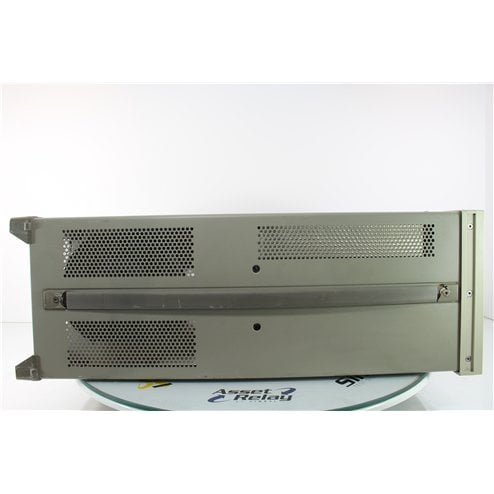

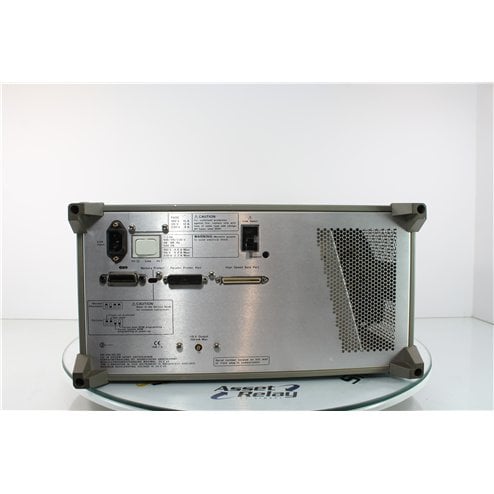

Agilent HP 83480A Digital Communication Analyzer Mainframe

Specifications

  • Time Base (horizontal): 10 ps/division (min.): 1 s/division (max.)
  • Trigger: pulse widht: 200 ps, 200mV
  • Trigger sensitivity: 40 mVpp at 100 MHz (minimum, normal mode): < 2 V DC + AC peak (maximum, +16 dBm, normal mode)
  • Nominal Impedance: 50 Ω
  • Reflection: 10% for 10 ps risetime
  • Connector Type: 3.5mm (male)
  • Bandwidth Limit: 100 MHz
  • Display Resolution: 451 horizontally by 256 points vertically
  • Data Transfer: 550 Kb/s typical
  • Remotely programmable
Read moreShow less
