Agilent 86100B opt001 Infiniium DCA
USD $6,450.00
Agilent 86100A Opt 001 Infiniium DCA
USD $4,747.00
Agilent 86100B Infiniium DCA
USD $4,650.00

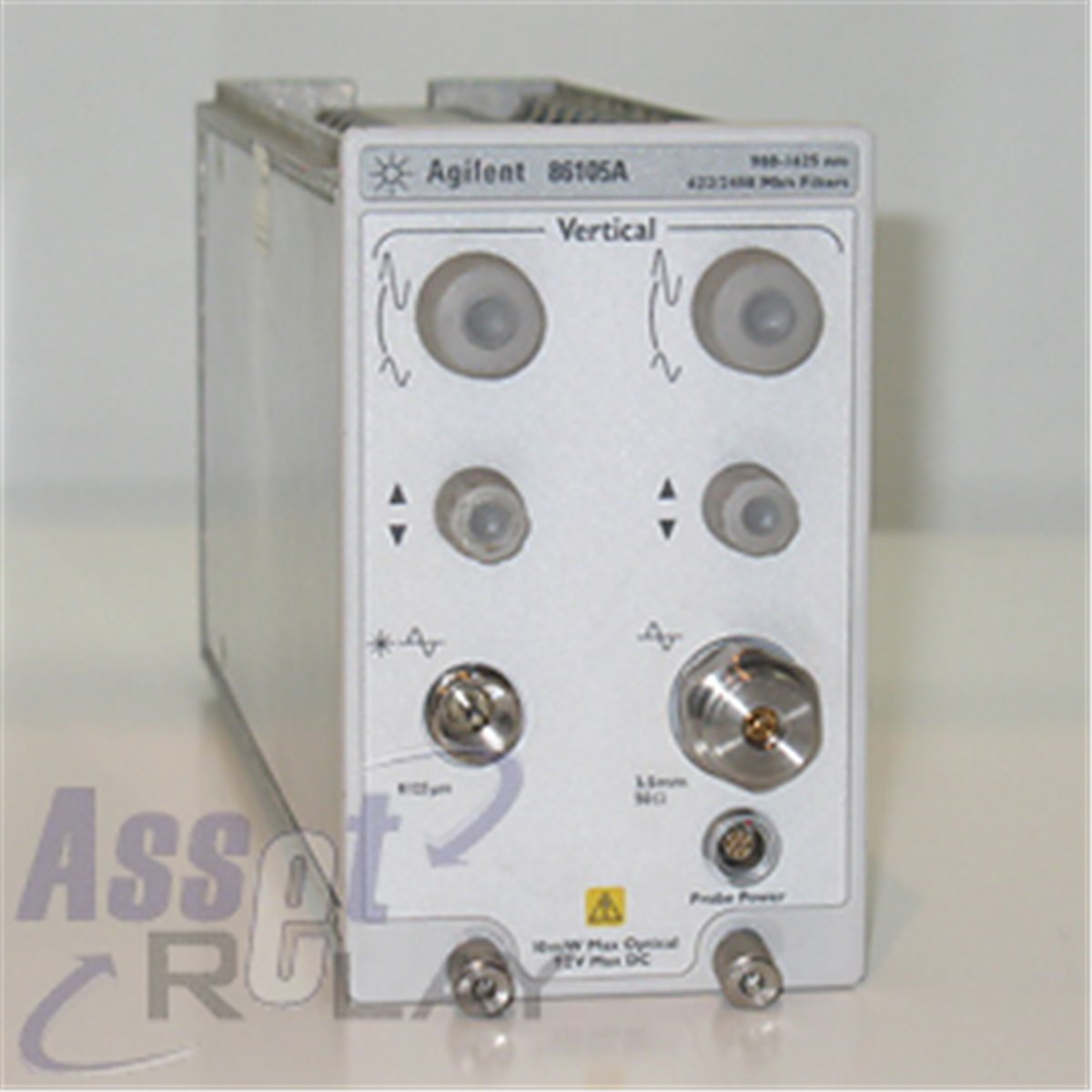

Agilent 86105A opt103 O/E Plug-In Module
The Agilent 86105A Plug-In module is compatible with Agilent DCA Mainframes 86100x Series. The 86105A wavelenght range is 1000-1600 nm and consist of one 20 GHz electrical channel and one 20 GHz optical channel. It can be fitted with 1 or 2x switchable filters. This 86105A Option 103 includes 2488 Mb/s Filtered data rate.
Click the PDF Specification for further information.
Request Pricing
Out-of-Stock
Condition
Used
Reference:
86105A_Opt103
Brand:
Agilent 86105A Opiton 103 Optical/Electrical Plug-In Module. single mode, unamplified
Agilent 86105A incorporating two measurement channels - one optical, the second electrical. Each channel has two selectable bandwidth settings.
Optical specs at glance:
- Optical Channel Unfiltered Bandwidth: 20 GHz
- Number of Optical Channel: 1
- Wavelength Range: 1000 nm to 1600 nm
- Fiber input: 9/125 µm
- Sensitivity: -8 dBm
- Option 103: 2.488 Gb/s
Electrical specs at glance of 86105A with option 103
- Number of electrical channel: 1
- Electrical Channel Bandwidth: 12.4 GHz and 20 GHz
- Transition Time: 28 ps (12.4 GHz) and 17.5 ps (20 GHz)
Compatibility
- 86100A/B/C Infiniium DCA/DCA-J Mainframes
One Optical Interface connector 81000XI
