Agilent HP 81554SM dual wavelength Fabry Perot 1310/1550 nm

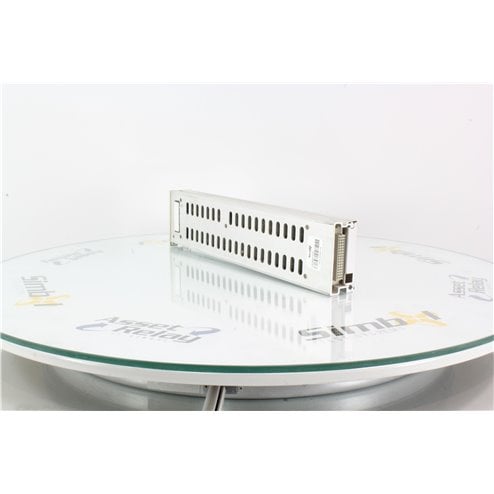

Agilent HP 81554SM Dual Wavelength Fabry-Perot Laser Source Module 1310/1550 nm

The Agilent HP 81554SM Dual Wavelength Fabry-Perot Laser Source Module is a high-precision optical laser source designed for use with HP 8153, 8163, 8164, and 8166 mainframes. Offering dual-wavelength capabilities at 1310 nm ± 20 nm and 1550 nm ± 20 nm, this module is an excellent choice for fiber optic testing applications requiring two standard telecom wavelengths.

With an output power of > -1 dBm, this laser source provides stable and precise optical signals. It supports 9/125 µm fiber, making it ideal for single-mode fiber testing, telecommunications, and research applications.

Key Features and Benefits

• Dual-Wavelength Operation – Features 1310 nm and 1550 nm for versatile fiber optic testing.
• Output Power – Provides > -1 dBm for precise and reliable optical measurements.
• Stable Fabry-Perot Laser Technology – Ensures accurate and repeatable results.
• Spectral Bandwidth – Delivers < 2.5 nm rms spectral bandwidth for improved testing accuracy.
• Compatible with Multiple Mainframes – Works seamlessly with HP 8153, 8163, 8164, and 8166 optical mainframes.

Technical Specifications

Additional Requirements

One Interface Optical Connector from the 8100XI series is required for operation but is not included and must be purchased separately.

Calibration and Quality Assurance

Each HP 81554SM Dual Wavelength Fabry-Perot Laser Source Module is calibrated before shipping to meet OEM specifications. The package includes:

• Calibration Certificate
• Calibration Label
• Calibration Data

Why Choose the HP 81554SM Dual Wavelength Fabry-Perot Laser Source Module?

The HP 81554SM is the perfect solution for optical testing professionals who require a dual-wavelength laser source. Whether for telecommunications, research, or fiber optic network maintenance, this module ensures precise and reliable measurements for critical applications.

Upgrade your fiber optic testing capabilities with the HP 81554SM Dual Wavelength Fabry-Perot Laser Source Module—a powerful and dependable tool for high-accuracy optical testing.
