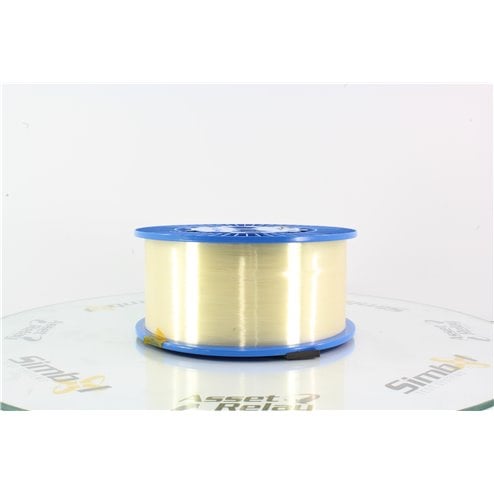

Corning Leaf Optical Fiber Spool 19.5km

The Corning Leaf Optical Fiber Spool (19.5km) is a high-performance non-zero dispersion-shifted fiber (NZ-DSF) designed for long-haul and metropolitan networks. With an attenuation of <0.22 dB/km at 1550 nm and <0.24 dB/km at 1625 nm, it ensures low-loss signal transmission. Featuring a mode field diameter of 9.2 - 10.0 µm, it provides optimized dispersion characteristics for high-speed optical communication. This spool is ideal for fiber optic testing, calibration, and deployment in advanced telecom infrastructures.
Read moreShow less

Request Pricing

5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
FS1RS40019500
Brand:
Description

Corning Optical Fiber Spool

Specifications at a glance:

  • Fiber type: LEAF non-zero (NZ) DSF
  • Attenuation 1550 nm: < 0.22 dB/km
  • Attenuation 1625 nm: < 0.24 dB/km
  • Modefield Diameter 1550 nm: 9.2 - 10.0 µm
  • Dispersion 1550 nm: 2.0 -6.0 psec/nm*km
  • Dispersion 1625 nm: 4.5 -11.2 psec/nm*km
  • Connectors: none
  • Length: 19.5km ± 300m

Additional Information

We can install connectors, call us for details
