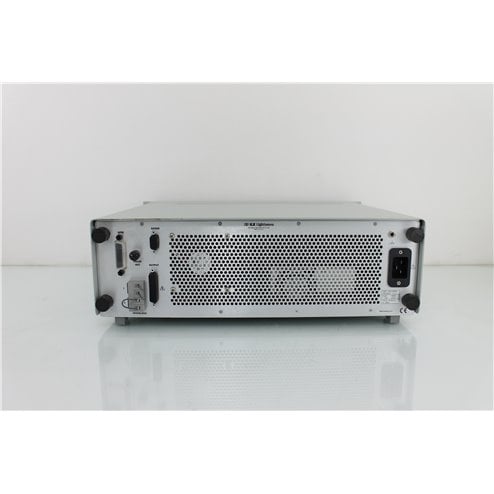

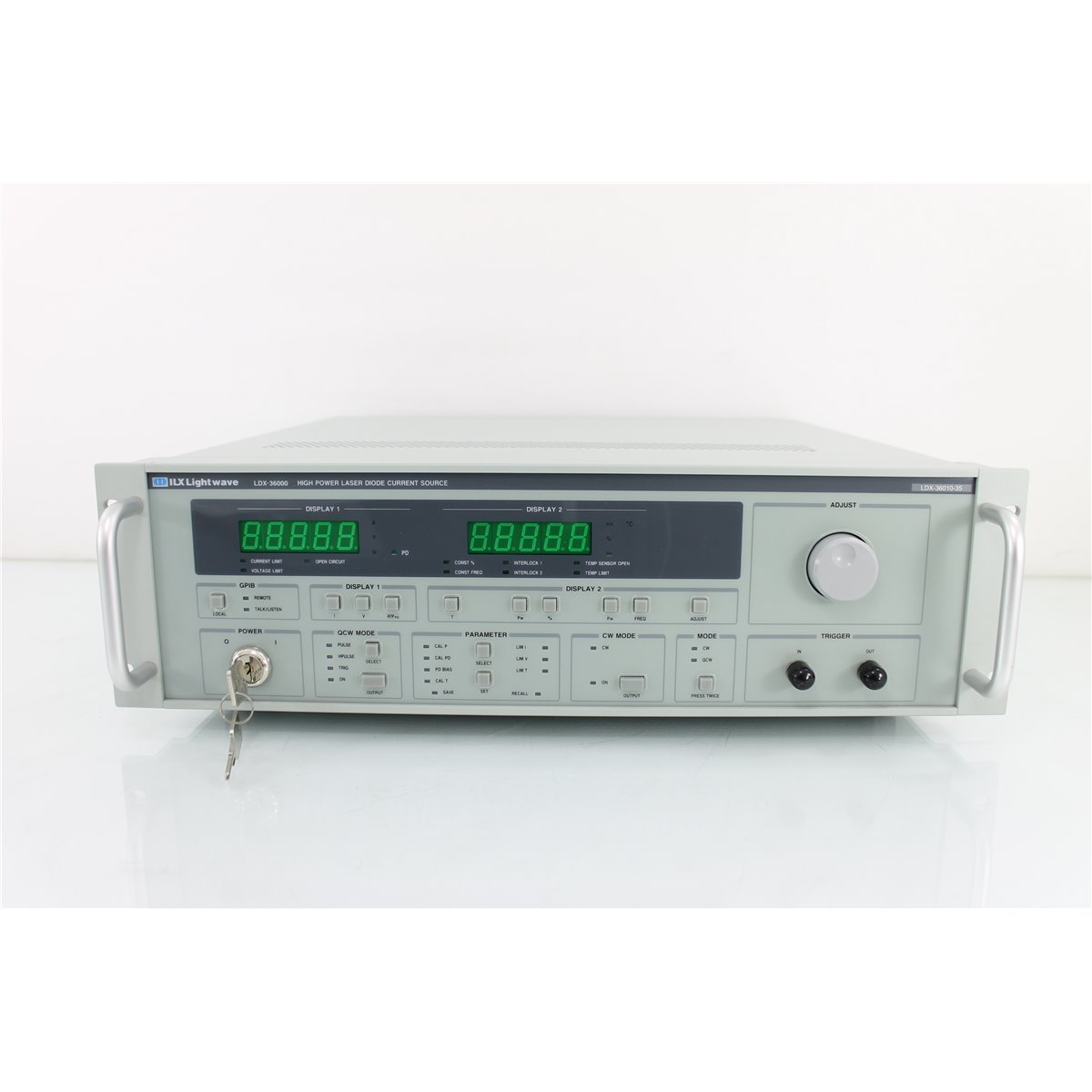

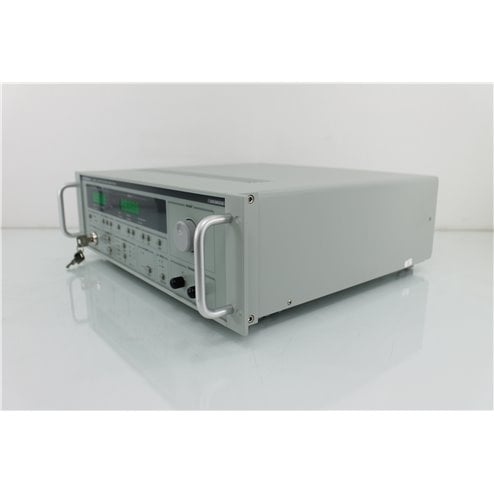

ILX LDX-36010-35 Series High-Stability High-Power Laser Driver

The LDX-36010-35 High Power Laser Diode Driver is a 10 A and 35 V current source that offers CW, QCW, and Hard Pulse Output with multiple levels of laser diode protection. In QCW mode the LDX36010-35 can output up to 20 A at 35 V. In addition the LDX3601035 features 4-wire voltage measurement, photodiode measurement, and a trigger in and out.

Read moreShow less
USD $1,895.00
5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
LDX-36010-35
Brand:
Description

Technical Specs

  • Laser Current: 10 A
  • Laser Drive Requirement: 1 to 10 A
  • Output Current CW: 10 A
  • Output Current QCW: 20 A
  • Laser Compliance Voltage: 35 V
  • Temperature Coefficient: <50 ppm FS/°C
  • Computer Interfaces: GPIB
  • Power Requirements: 100-120 V AC, 200-240 V AC
  • Laser Current Resolution: 10 mA
  • Laser Current Accuracy: ±(0.1% of FS +10 mA)
  • Noise/Ripple (rms): < 10 mA
  • Current Output 1 h Stability: <100 ppm FS
  • Duty Cycle: 0.5 to 20 %
  • Forward Voltage Accuracy: +0.05% of 20 mV
  • Forward Voltage Resolution: 10 mV
  • Monitor Current Accuracy: +0.1% of FS
  • Monitor Current Range: 3 to 10000 µA
  • Photodiode Reverse Bias: 0 to 15 V
  • Pulse Width: 40 µs to 2 s
  • Pulse Repetition Rate: 0.1 to 1000 Hz
  • Rise/Fall Time: <10 µs
  • Display Type: 5-digit Green LED
  • Weight: 11.3 kg
Read moreShow less
Product Details
LDX-36010-35
