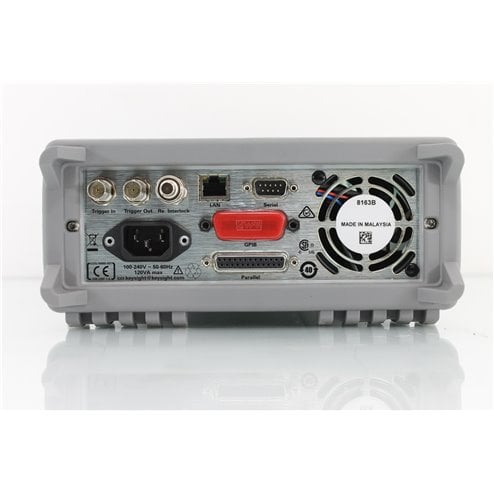

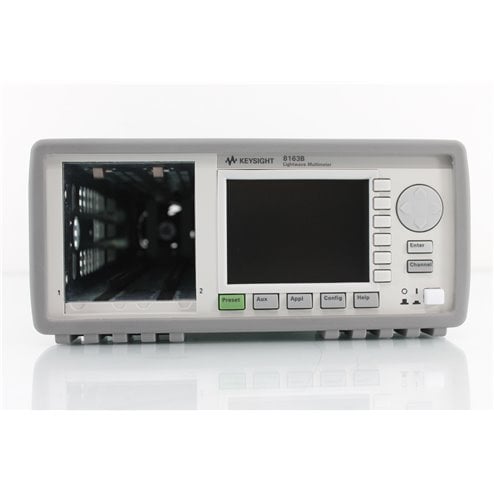

Keysight 8163B Lightwave Multimeter LAN

The Keysight 8163B Lightwave Multimeter is an advanced measurement tool that provides flexible modular configuration and easy control of test solutions. This mainframe is used for optical component testing and is ideal for laboratory and portable usage.

The 8163B features two compact module slots and a graphical interface for optical component testing. It provides a high-resolution color display and includes built-in applications such as return loss, passive component test, stability, and logging. The device also offers GPIB and LAN interfaces for remote control.

This Lightwave Multimeter is designed for setups requiring single or dual-channel power meters, single or dual wavelength fixed or tunable sources, loss test sets, and return loss test sets. All modes and parameters are accessible via the GP-IB interface.

The 8163B operates at a temperature range of 0 °C to +35 °C and can be stored at temperatures ranging from -40 °C to +70 °C. It is designed for pollution degree 2 and can operate at a maximum altitude of 2000 m. The device dimensions are 145 mm x 426 mm x 545 mm (5.8” x 16.9” x 21.6”) and it weighs 20 kg.

The Keysight 8163B Lightwave Multimeter is a cost-effective solution that provides stable measurements independent of the optical fiber type. It accepts both single-mode and multimode fibers, making it a versatile tool for a variety of applications.

Discover the Keysight 8163B Lightwave Multimeter at AssetRelay.com, your trusted source for quality telecom equipment. This device achieves a level of space-saving channel density that is new in the industry and simplifies fiber handling for many-port device testing.

Keysight 8163B Lightwave Multimeter Mainframe

Features
- High resolution color display
- 2 slots for hosting power modules, return loss modules, compact tunable lasers or fixed laser sources
- Built-in applications: (Return Loss, Passive Component Test, Stability, Logging)
- GPIB Interface for remote control extended system trigger and clocking system
- Extensive triggering functionality
- Both LAN and GPIB interface for remote control
