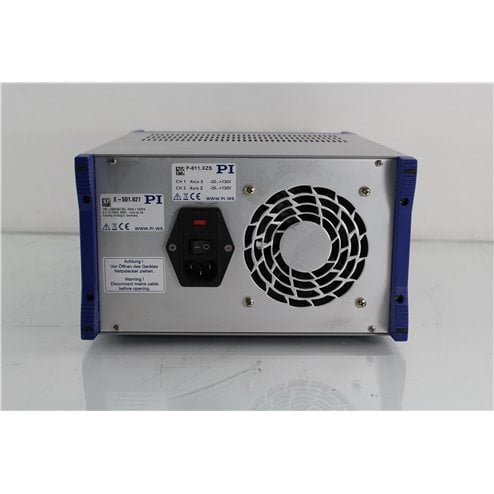

Physik Instrumente E-501 Modular Piezo Controller System
The Physik Instrumente E-501 is a compact modular control-system chassis designed for operating compatible piezo actuators, piezo nanopositioning stages, and piezo-based tip/tilt platforms. Its configurable architecture allows the system to be equipped with application-specific amplifier, sensor, servo-control, interface, and display modules.
The E-501 uses a 9.5-inch chassis and supports one or three motion-control channels, depending on the amplifier module installed. The compact enclosure provides a practical alternative to the larger 19-inch E-500 chassis for applications that require fewer modules or have limited equipment-rack and laboratory-bench space.
Available amplifier technologies support compatible piezo devices with operating voltages up to 135 V, ±250 V, or 1000 V. Amplifier modules are available in different performance classes, with peak power ratings from 14 W to 400 W across the broader E-500 and E-501 system family.
Closed-loop positioning configurations can incorporate compatible capacitive or strain-gauge sensor modules. Depending on the installed hardware, the E-501 can support precision position servo control for nanopositioning applications requiring high resolution, repeatability, stability, and compensation for piezo hysteresis and drift.
Features and Benefits of the Physik Instrumente E-501
- Compact modular chassis: Uses a 9.5-inch enclosure for integration into laboratory and automation systems with limited space.
- One- or three-channel operation: Supports one or three control channels, depending on the installed amplifier module.
- Piezo actuator compatibility: Operates compatible piezo actuators, nanopositioning stages, and piezo tip/tilt platforms.
- Multiple voltage classes: Supports available amplifier modules for devices requiring up to 135 V, ±250 V, or 1000 V operating voltage.
- High dynamic performance: Compatible power-amplifier configurations are available for applications requiring fast piezo response.
- Charge-control support: Compatible charge-control amplifiers can improve linearity during open-loop piezo operation.
- Closed-loop positioning: Supports compatible sensor and servo-control modules for precision nanopositioning.
- Capacitive sensor support: Compatible modules provide high-accuracy position feedback from PI nanopositioning systems equipped with capacitive sensors.
- Strain-gauge sensor support: Compatible configurations support position feedback from systems using strain sensors.
- Analog control: Compatible amplifier modules can be controlled directly through their analog inputs.
- Optional digital interfaces: Interface modules can provide digital host communication for automated control systems.
- Application-specific configuration: Amplifier, sensor, servo, interface, and display functions can be selected according to the connected positioning system.
- Professional nanopositioning applications: Suitable for photonics, microscopy, metrology, semiconductor, laboratory, and research systems.
Modular Piezo Control Architecture
The E-501 is a configurable controller chassis rather than a fixed-function piezo driver. Its operating capability is determined by the modules installed in the enclosure.
A complete system can include an amplifier module for driving the piezo load, a compatible sensor or servo-control module for closed-loop positioning, and an interface or display module for local or computer-based operation.
This modular design allows the controller to be tailored to the voltage, capacitance, dynamics, sensor type, axis count, and communication requirements of the connected piezo device.
The complete module complement should be documented before the controller is connected to a nanopositioner. The general E-501 designation alone does not identify the installed amplifier voltage, output power, channel count, sensor electronics, interface, or compatible positioning equipment.
One- or Three-Channel Operation
The E-501 chassis supports one or three motion-control channels, depending on the installed amplifier module. The chassis accommodates a maximum of one amplifier module.
A single-channel configuration can control one compatible piezo actuator or nanopositioning axis. A three-channel configuration can support a compatible XYZ nanopositioner, three independent piezo axes, or a multi-axis piezo system within the capabilities of the installed electronics.
The number of front-panel controls or connectors should not be used alone to determine the active channel count. The installed module model and system configuration must be verified.
Piezo Amplifier Options
The E-500 and E-501 platform supports amplifier and power-amplifier modules for compatible piezo actuators with operating voltages up to 135 V, ±250 V, or 1000 V. The correct amplifier class depends on the electrical requirements of the connected actuator or nanopositioning system.
Available amplifier configurations across the product family provide peak power from 14 W to 400 W. Higher-power modules are intended for applications requiring faster charging and discharging of capacitive piezo loads.
The installed amplifier output voltage, polarity, current capability, peak power, average power, bandwidth, and supported load capacitance must be verified before a piezo device is connected. An incorrect amplifier can damage the controller or connected actuator.
High-Dynamic Power Amplification
Compatible amplifier modules with switchable power-amplifier functions are available for high-dynamic piezo applications. These configurations support faster response when driving suitable capacitive loads.
Piezo positioning speed depends on the amplifier current capability, actuator capacitance, commanded voltage change, mechanical load, motion range, and control settings.
High peak power does not establish the continuous operating capability of the installed module. Thermal limits, average power, duty cycle, load capacitance, and ventilation requirements must be observed.
Charge-Control Amplifier Support
Compatible charge-control amplifiers can provide improved linearity during open-loop piezo operation. Instead of controlling only the applied voltage, charge-control electronics regulate the electrical charge delivered to the piezo actuator.
This approach can reduce the nonlinear displacement behavior associated with piezo hysteresis when position feedback is not available or not required.
Charge-control operation should only be assigned to an E-501 system when the appropriate amplifier module is installed. It is not an inherent function of the chassis itself.
Capacitive and Strain-Gauge Sensor Modules
Physik Instrumente uses capacitive and strain sensors in compatible positioning systems according to the required accuracy and application. The E-501 can be configured with appropriate sensor and servo-control electronics for the connected position-feedback system.
Capacitive sensors are commonly used in high-performance nanopositioning applications requiring accurate, direct position measurement. Strain-gauge sensors provide a compact feedback method for compatible piezo stages and actuators.
The sensor type, excitation, signal conditioning, connector, polarity, measurement range, and servo configuration must match the connected nanopositioning system.
Closed-Loop Servo Control
When equipped with compatible sensor and servo-control modules, the E-501 can regulate the measured position of a piezo actuator or nanopositioning stage. Closed-loop operation helps compensate for hysteresis, creep, drift, and load-related displacement changes.
Closed-loop performance depends on the installed electronics, position sensor, actuator, mechanical system, load, servo tuning, environmental stability, and motion command.
The controller should be operated using the positioner and sensor configuration for which the installed electronics were designed or calibrated. Servo settings from an unrelated stage should not be applied without appropriate system documentation and testing.
Analog and Digital Control
Compatible E-501 amplifier modules can be controlled directly through analog inputs. Analog control supports integration with waveform generators, data-acquisition equipment, feedback systems, laboratory instruments, and custom automation electronics.
Optional interface modules provide digital communication with an external host. Available host-control functions depend on the installed interface hardware and module configuration.
Digital communication should only be listed when the corresponding interface module and physical communication port are verified on the individual system.
Typical Applications
- Piezo actuator control
- Single-axis nanopositioning
- Three-axis XYZ nanopositioning
- Piezo tip/tilt platform control
- Optical alignment and beam steering
- Microscopy and scanning systems
- Interferometry and precision metrology
- Semiconductor inspection and processing
- Photonics research and development
- Fiber optic component alignment
- Laboratory automation
- Precision positioning in production equipment
Product Overview
| Brand |
Physik Instrumente |
| Brand Abbreviation |
PI |
| Model |
E-501 |
| Chassis Model |
E-501.00 |
| Product Category |
Modular Piezo Controller System |
| Chassis Format |
9.5-inch enclosure |
| Supported Channel Configurations |
One or three channels, depending on installed amplifier module |
| Maximum Amplifier Modules |
One |
| Supported Functions |
Piezo amplification, sensor processing, servo control, interface, and display functions depending on installed modules |
| Primary Application |
Control of compatible piezo actuators and nanopositioning systems |
E-501 Chassis Specifications
| Specification |
Details |
| Chassis Function |
Housing for compatible amplifier, sensor, servo-control, interface, and display modules |
| Chassis Width |
236 mm plus handles |
| Chassis Height |
132 mm |
| Chassis Depth |
296 mm plus handles |
| Supported Channels |
One or three |
| Maximum Amplifier Modules |
One |
| AC Input |
90 V to 120 V AC or 220 V to 264 V AC |
| Line Frequency |
50 Hz to 60 Hz |
| Maximum Power Consumption |
80 W |
Supported Module Functions
| Module Function |
Available Capability |
| Piezo Amplification |
Compatible low-voltage or high-voltage piezo amplifier modules |
| Supported Voltage Classes |
Up to 135 V, ±250 V, or 1000 V depending on installed amplifier |
| Peak Power Classes |
14 W to 400 W across compatible platform modules |
| Sensor Processing |
Compatible capacitive or strain-gauge sensor modules |
| Servo Control |
Position-control capability when compatible sensor and servo modules are installed |
| Open-Loop Linearity |
Improved through compatible charge-control amplifier modules |
| Analog Control |
Directly through the compatible amplifier’s analog input |
| Digital Host Control |
Available through a compatible installed interface module |
Configuration Details Requiring Verification
| Configuration Item |
Verification Required |
| Amplifier Module |
Confirm the complete installed module model and voltage class |
| Channel Count |
Confirm whether the system provides one or three active channels |
| Output Voltage |
Verify before connecting any piezo actuator |
| Peak and Average Power |
Confirm from the installed amplifier specification |
| Sensor Module |
Confirm capacitive, strain-gauge, or open-loop configuration |
| Servo-Control Module |
Confirm the installed closed-loop control electronics |
| Host Interface |
Confirm analog-only or installed digital communication interface |
| Positioner Compatibility |
Verify actuator voltage, capacitance, sensor, connector, and calibration requirements |
| AC Input Configuration |
Verify the selected line-voltage range before applying power |
Installation and System Integration
The E-501 should be installed on a stable laboratory bench or in an appropriately supported equipment enclosure. Adequate clearance should be maintained around the chassis for ventilation, module access, signal cables, actuator cables, and AC power.
The selected AC input range must match the available facility supply before the controller is energized. The controller should be connected to protective earth using the appropriate power cord and grounding arrangement.
Before connecting a piezo actuator, the installed amplifier output voltage and connector assignment must be verified. The actuator’s voltage range, capacitance, polarity, sensor type, and cable pinout must match the installed controller modules.
Piezo output connectors should only be attached or removed while the corresponding amplifier output is disabled. High-voltage amplifier configurations can retain electrical charge after operation and should be handled according to the applicable safety procedure.
Comprehensive Functional and Performance Testing
The Physik Instrumente E-501 receives comprehensive functional and performance testing before shipment. Evaluation may include AC power operation, chassis power supply, cooling, front-panel controls, displays, indicators, and recognition or operation of the installed amplifier, sensor, servo, and interface modules.
Amplifier testing may include output-enable operation, DC output range, gain, polarity, analog input response, current capability, and representative capacitive-load operation when suitable equipment is available.
Closed-loop systems may be evaluated using a compatible PI nanopositioner to verify sensor feedback, servo operation, commanded movement, position stability, and channel response. Digital interfaces may be tested when the corresponding communication module is installed.
The chassis, handles, module connectors, front-panel controls, piezo outputs, sensor inputs, analog inputs, communication ports, AC inlet, cooling openings, identification labels, and installed hardware may be inspected for damage, contamination, corrosion, or excessive wear.
The exact testing scope depends on the installed module complement, output-voltage class, channel count, interface configuration, compatible actuator, sensor system, cables, and available nanopositioning test equipment.
Buyer Considerations
Buyers should confirm the complete chassis and module configuration. The E-501 model identifies the compact modular enclosure but does not define the installed amplifier voltage, power, channel count, sensor electronics, servo functions, or computer interface.
The connected piezo actuator must match the installed amplifier and sensor system. A physically compatible connector does not establish electrical or control compatibility.
The product listing should identify every installed module by complete model number. It should also specify whether piezo cables, sensor cables, host-interface cables, AC power cord, rack hardware, software, manuals, nanopositioners, test records, or other accessories are included.
Only the Physik Instrumente E-501 chassis, installed modules, and accessories specifically identified in the product listing should be considered included.
