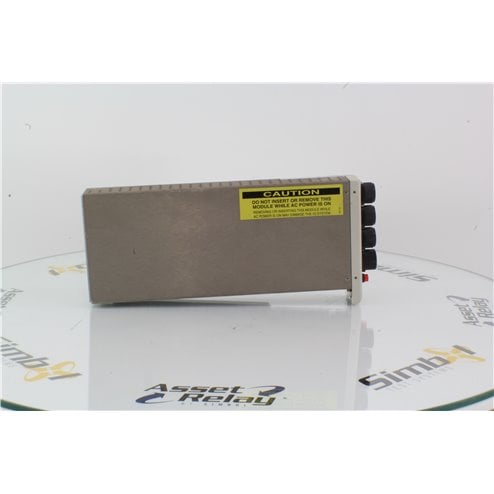

Exfo IQ-1203 4-Channel Power Meter

The EXFO IQ-1203 4-Channel Power Meter is a high-precision optical measurement device designed for multi-channel monitoring and testing. It features four independent photodetectors, allowing simultaneous measurements across multiple optical components. The IQ-1203 supports a wavelength range of 800 to 1700nm and a power range from -85dBm to +9dBm, ensuring versatility in various optical applications. This power meter offers absolute and relative power measurements, along with offset nulling for enhanced accuracy. Its graphical display mode improves usability, while timed and conditional multi-channel data acquisitions provide flexibility in testing scenarios. The device is equipped with an InGaAs detector, ensuring reliable performance in fiber optic systems. Additionally, the IQ-1203 integrates seamlessly with EXFO’s IQ-203 mainframe and IQ-206 expansion units, enabling scalable testing solutions.
Read moreShow less
USD $297.00
5 1
,
5/ 5
Yes, we have 4 in stock
Condition
Used
Reference:
IQ-1203
Brand:
Description
Exfo IQ-1203 4-Channel Power Meter Module for IQ-203 and IQ-206 Platform

Specifications at glance for the IQ-1203

  • Detector type: InGaAs
  • Detector size: 1 mm
  • Wavelength range: 800-1700 nm
  • Power range: -85 dBm to 9 dBm
  • Uncertainty: +/- 5% (1000 to 1640 nm)(0 to -55 dB)
  • Power resolution: 0.001 (9 to -55 dB)
  • Fiber type: 5/125 to 62.5/125 um

Four fiber-Optic connector type FOA are needed FOA-222: FC
FOA-254: SC
FOA-298: LC

Read moreShow less
Product Details
IQ-1203
