JDSU Viavi ONT-503 10G 2.5G Optical Network Tester SONET SDH OTN Analyzer: Compact 3-Slot Multi-Application Platform for High-Speed Network Test

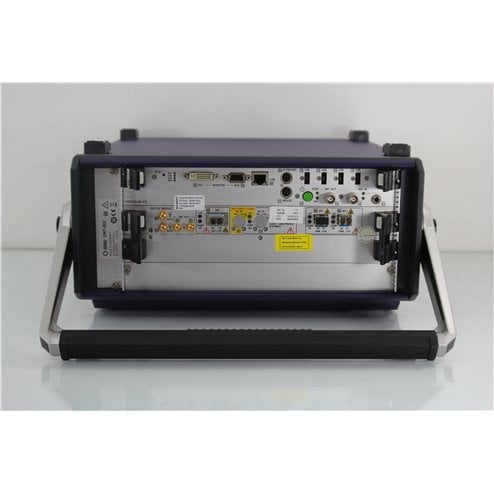

The JDSU Viavi ONT-503 10G 2.5G Optical Network Tester SONET SDH OTN Analyzer is a compact 3-slot mainframe from the ONT-5xx family, designed as a portable multi-application platform for high-speed telecom network testing. Supporting SONET/SDH, OTN, Ethernet, Jitter/Wander, DSn/PDH, and NewGen applications up to 43 Gb/s and beyond, it targets R&D engineers, system verification teams, and manufacturing test groups working on high-speed transport equipment and line cards.

Key Features and Benefits of the JDSU Viavi ONT-503 10G 2.5G Optical Network Tester SONET SDH OTN Analyzer

• 3-slot compact mainframe — Portable form factor for high coverage of the device under test while keeping the instrument bench- and field-friendly.
• Multi-application support — Runs SONET/SDH, NewGen, Ethernet, OTN, Jitter, and DSn/PDH applications from the same chassis.
• Multi-port testing — All installed test module interfaces run simultaneously and independently, allowing parallel test execution.
• Multi-user operation — Modules can be shared between users with login control, enabling collaborative test workflows.
• Multi-channel SONET/SDH testing — Checks multiple SONET/SDH channels simultaneously for grooming and switching verification.
• Jitter/Wander test capability — High-accuracy jitter and wander testing according to ITU-T O.172 Appendices VII and VIII, and O.173.

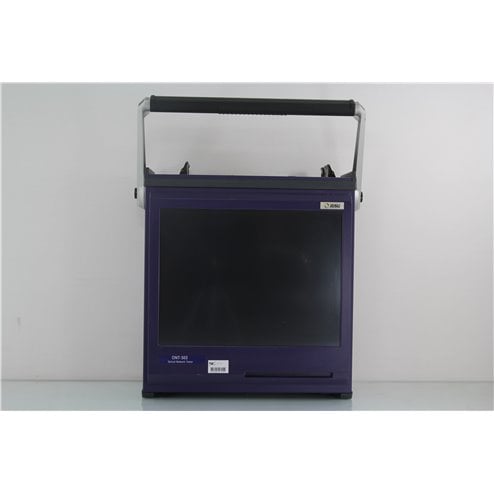

• 1024 × 768 XGA display — Integrated touchscreen for local operation without external peripherals.
• Automation-friendly platform — Linux operating system with Tcl/Tk, C, and LabWindows driver libraries for easy integration into automated test environments.
• LAN, VNC, and Java Web Start remote access — Multiple remote operation options support both interactive and automated workflows.
• Hot-swap NOT supported — Modules must be installed with power removed, ensuring reliable installation and predictable system behavior.

Advanced Capabilities

The ONT-503's client-server architecture is what enables its flexible operation modes. The server component always runs on the ONT-503 itself, directly interfacing with the test module hardware, while the client — providing the user interface — can run either locally on the built-in PC or remotely on an external workstation. This separation supports three distinct modes of operation: local operation via the built-in touchscreen, remote operation via Java Web Start GUI, and remote control via SCPI command line for automated test scripting. Multiple clients can connect simultaneously, allowing collaborative test execution across geographically distributed teams.

The multi-application, multi-port design is the other engineering strength worth calling out. With three slots, the ONT-503 can host combinations of test modules covering everything from DSn/PDH single-port testing up through 40/43G SDH/SONET/OTN and Module E 10G LAN/WAN/FC applications. Each test module operates independently — a technician can run a 10G BER test on one slot while another user runs jitter compliance testing on a second slot without interference. Combined with the ONT-5xx software's session and user management, this makes the ONT-503 a genuine shared resource in a lab or production environment rather than a single-user instrument.

Calibration and Quality Assurance

Every JDSU Viavi ONT-503 is calibrated prior to shipping to OEM specifications. The order includes a Calibration Certificate, Calibration Label, and full Calibration Data. This means the instrument arrives traceable, audit-ready, and ready to use straight out of the box — no need to schedule a calibration cycle before putting it into service.
