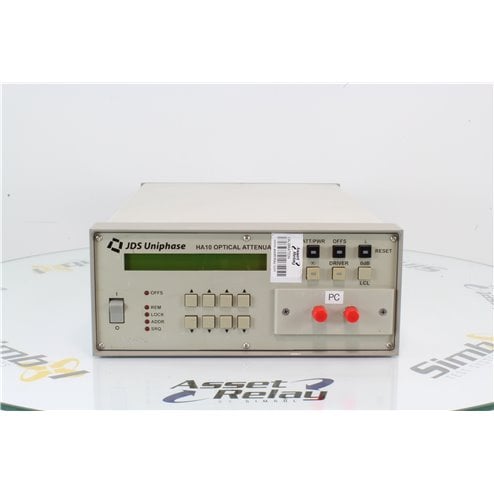

JDS (Viavi) HA107+20ANC4 Optical Attenuator

The JDSU HA107 is a Singlemode 9/125 µm optical attenuator. The JDS Uniphase Programmable Attenuator HA107 model has a wavelength range of 1520-1630 nm. It has an attenuation range of 30 dB and a resolution of 0.01 dB . This HA107+20ANC4 has no built-in option. The port type is 2.5 meters pigtails on back with NO connectors. However, we can install the connector of your choice on this HA107. JDSU HA107 attenuators can also be fitted with 10/90, 50/50, 2/98, 30/70 couplers or 1:2 switch. The H107 Series has a SCPI/HP8156A compatible command set and they can be controlled either from the front panel keypad or by GPIB (IEEE 488.2) and RS232 interfaces ..

Download JDS HA Series Specification SheetDownload JDS HA Series Specification Sheet

Download JDS HA Series User ManualDownload JDS HA Series User Manual

Read moreShow less
USD $3,327.00
5 1
,
5/ 5
Yes, we have more than 5 in stock
Condition
Used
Reference:
HA107-20ANC4
Brand:
JDS
Description

JDS (Viavi) HA107+20ANC4 Optical Attenuator – Precision and Performance for Fiber Optic Networks

The JDS (Viavi) HA107+20ANC4 Optical Attenuator is a high-precision optical component designed for superior control in singlemode fiber networks. With an attenuation range of 30 dB and fine resolution of 0.01 dB, it provides exceptional accuracy and stability for optical testing, research, and network maintenance. Its advanced design ensures low insertion loss and high return loss, making it an essential tool for professionals working with fiber optic systems.

Key Features and Benefits

  • Optimized Wavelength Range: Supports an operating wavelength of 1520 to 1630 nm, ideal for various optical applications.
  • High Precision Attenuation: Offers a wide 30 dB attenuation range with a fine-tuned 0.01 dB resolution.
  • Low Insertion Loss: Ensures minimal signal degradation with an insertion loss of <0.8 dB.
  • Superior Return Loss: Designed with an analog return loss of > 60 dB, reducing unwanted signal reflections.
  • Reliable Singlemode Performance: Utilizes 9/125 µm fiber for seamless singlemode operation.

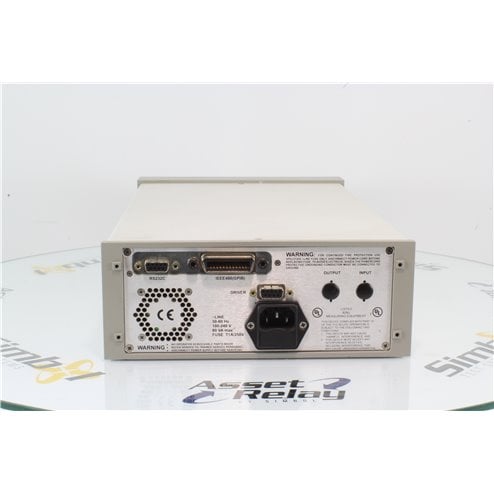

  • Flexible Port Configuration: Equipped with pigtails on the back for streamlined integration.
  • Versatile Connectivity: Supports both GPIB and RS232 interfaces for remote control and automation.
  • Custom Connector Options: The unit is shipped with no connectors but can be customized based on user preferences.

Technical Specifications

Specification Details
Operating Wavelength Range 1520 to 1630 nm
Fiber Type 9/125 µm
Attenuation Range 30 dB
Attenuation Resolution 0.01 dB
Insertion Loss <0.8 dB
Return Loss (Analog) > 60 dB
Built-in Options None
Port Type Pigtails on back
Connector Type No connector
Remote Interface GPIB and RS232

Pre-Calibrated for Accuracy

The JDS (Viavi) HA107+20ANC4 Optical Attenuator is calibrated before shipping to meet OEM specifications. It includes a Calibration Certificate, a Calibration Label, and Calibration Data, ensuring immediate usability in precision applications.

Ideal for Optical Testing and Research

Designed for professionals, this attenuator is perfect for laboratory experiments, fieldwork, and network diagnostics. Its combination of accuracy, low loss, and customization makes it a highly reliable choice for demanding optical environments.
