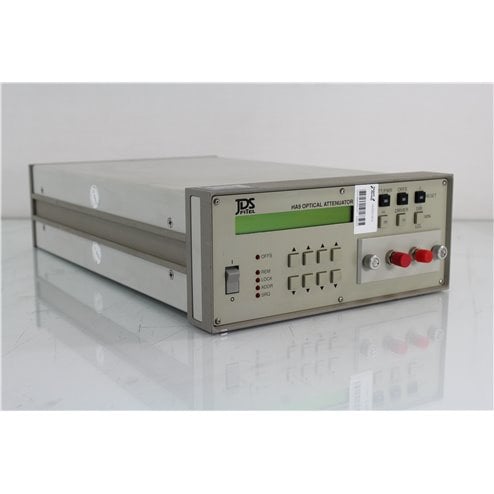

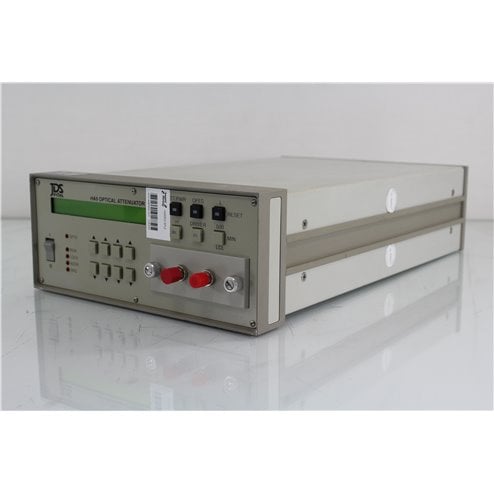

HA9503-SPL2 Optical Attenuator
The JDS Fitel HA9503 is a Singlemode 9/125 µm optical attenuator. The JDS Uniphase Programmable Attenuator HA9503 model has a wide wavelength range of 1200-1700 nm. It has an attenuation range of 100 Db and a accuracy of ± 0.15 dB . This HA9503+SPL2 has a no built-in option. The port type is bulkheads on front with ST/PC connectors. JDS Fitel HA9503 Series attenuators can also be fitted with AC19 10/90 splitter, 50/50 splitter or with a SW12 optical switch 1x2. The H9 Series has a SCPI/HP8156A compatible command set and they can be controlled either from the front panel keypad or by GPIB (IEEE 488.2) and RS232 interfaces .
Click the PDF Specification for further information.
JDS HA9503-SPL2 Single Mode Optical Attenuator, FC/PC Connector
Specs at glance for the HA9503-SPL2
- Operating Wavelength Range: 1200-1700 nm
- Attenuation Range: 100 dB
- Attenuation Accuracy: ± 0.15 dB
- Insertion Loss: < 2.0 dB
- Return Loss : > 45 dB
- Maximum Optical Input Power: 200 mW
- Fiber Type: Singlemode 9/125 µm
- Port Type: Bulkheads on front
- Connector type:ST/PC
- Options: none
- Remote Control: GPIB and RS232
