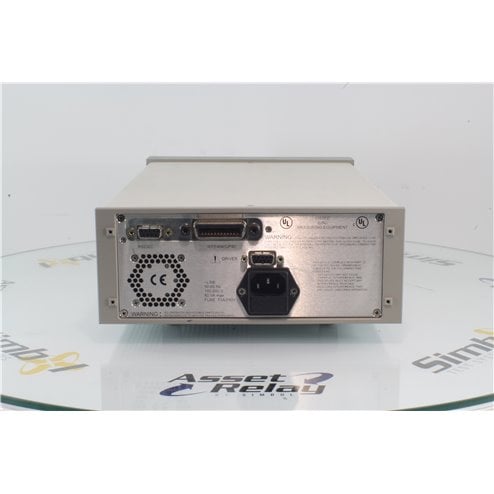

JDS HA9W7+20AFA1 Optical Attenuator

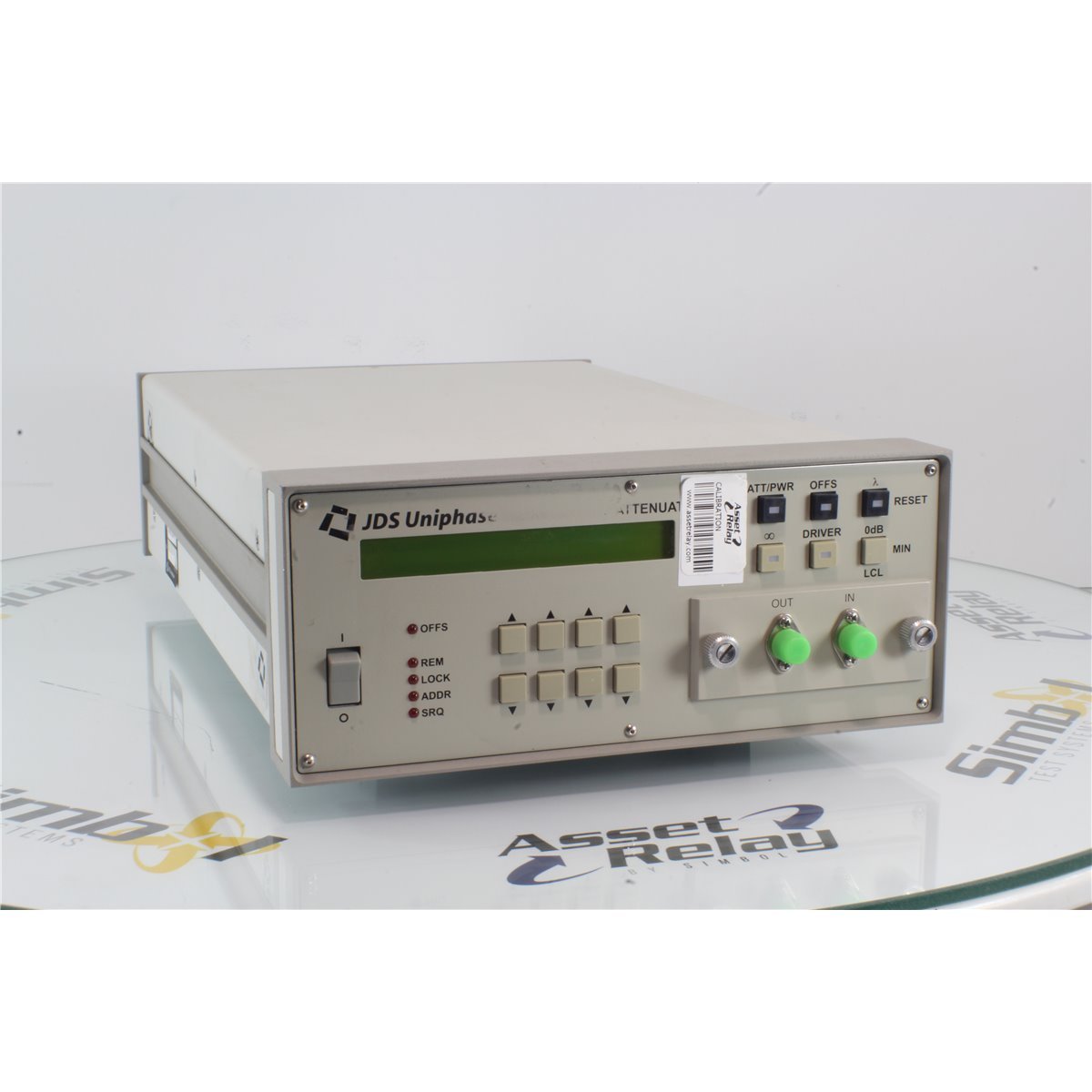

The JDSU HA9W7 is a Singlemode 9/125 µm optical attenuator. The JDS Uniphase Programmable Attenuator HA9W7 model has a wide wavelength range of 750-1700 nm. It has an attenuation range of 60 dB and a resolution of 0.01 dB. This HA9W7+20AFA1 has no built-in options. The port type is bulkheads on front with FC/APC connectors. However the HA9 and HA1 attenuators can be fitted with 2/98, 10/90, 30/70 or 50/50 couplers or with 1x2 switch. The HA9 has a SCPI/HP8156A compatible command set and can be controlled either from the front panel keyboard or by GPIB and RS232 interfaces.
Click the PDF Specification for further information.
