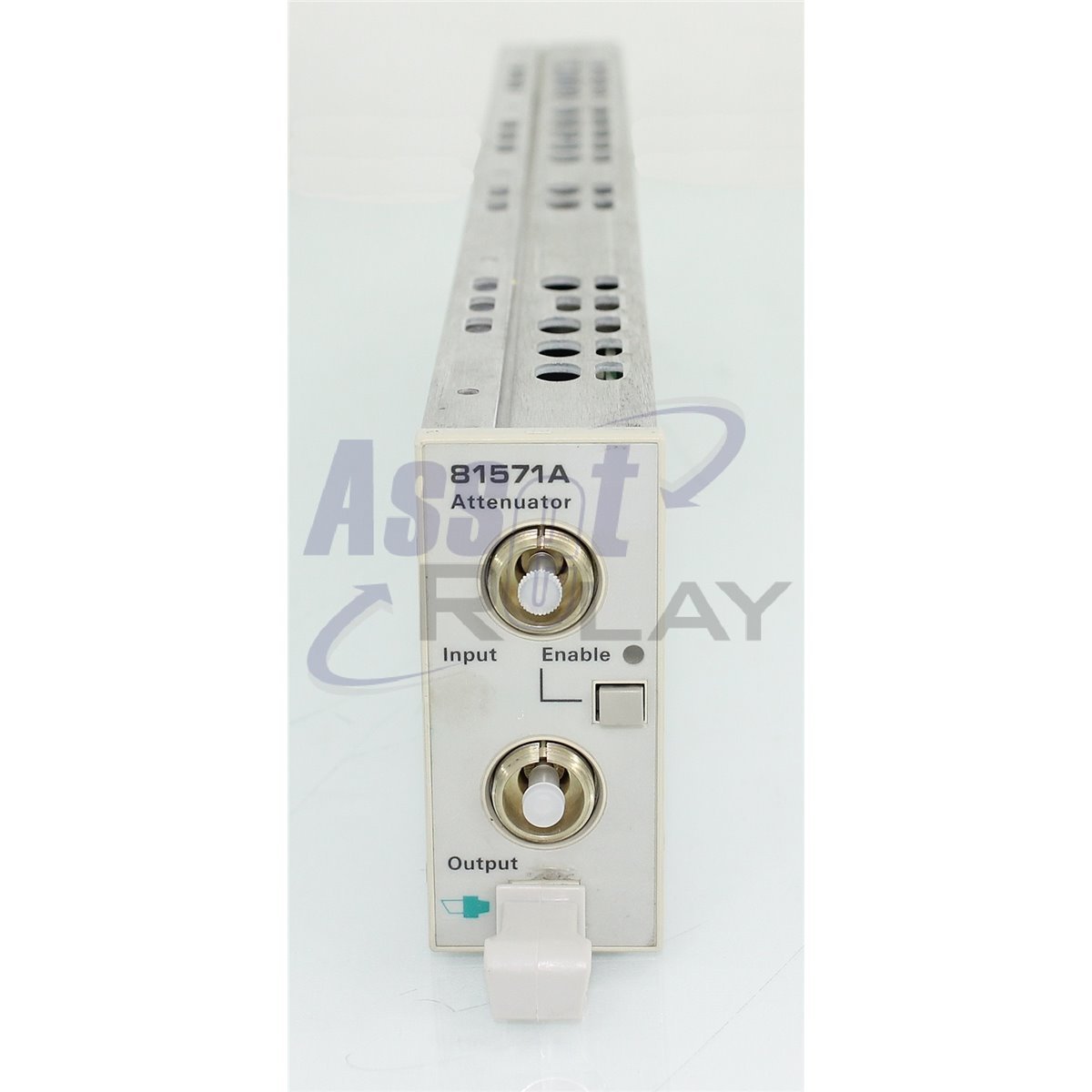

Agilent 81571A Optical Attenuator
The Agilent/HP 81571A is a variable optical attenuator plug-in module (single slot) for Agilent's Lightwave Multichannel Platform 8163, 8164 and 8166 series, used for attenuation and control of high-power applications. Using 9/125 um single mode optical fibers (SMF28), Agilent 81571A features high power capability (+33dBm) and excellent wavelength flatness for DWDM applications. Other standard applications include characterization of EDFAs, test of Raman amplifiers and multi channel transmission system testing. A pigtail version (see 81573) can be used for optimization of power loss when fibers are spliced into the set-up. This high resolution module (0.001 dB) has a typical return loss of 57dB and is used with straight fiber connector.
Click the PDF Specification for further information.
Optical Attenuator. This VOA is a "one slot" plug-in module and pairs with the Agilent Mainframes 8163A/B, 8164A/B and 8166 A/B.
Specifications at a glance for the 81571A:
- Connectivity: Angled Connector, Versatile Interface
- Fiber type: Singlemode 9/125um SMF28
- Wavelength Range: 1200-1700 nm
- Attenuation Range: 0-60 dB
- Resolution: 0.001 dB
- Accuracy: +/- 0.1dB
- Return Loss: typ.57 dB
- Maximum Input Power: +33 dBm
Two connector interfaces are required for each Agilent 81571A. Each connector is sold separately.
