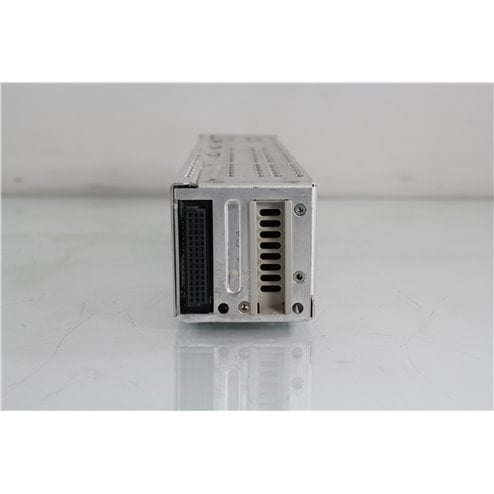

Agilent 81576A Optical Attenuator (iVOA)
The Agilent/HP 81576A is an intelligent variable optical attenuator( iVOA) plug-in module (dual-slot) for Agilent's Lightwave Multichannel Platform 8163, 8164 and 8166 series, used for attenuation and control of high-power applications. Using 9/125 um single mode optical fibers (SMF28), Agilent 81576A features power control functionality: this HP 81576A module automatically corrects power changes at the input to maintain the output level set by the user. In addition, it provides high power capability (+33dBm) and excellent wavelength flatness for DWDM applications. Standard applications include characterization of EDFAs, test of Raman amplifiers and multi channel transmission system testing. This high resolution module (0.001 dB) has a typical return loss of 45dB and is used with straight fiber connector.
Click the PDF Specification for further information.
Agilent 81576A Optical Attenuator with Power Control to set the output power level of the attenuator. This VOA is a "two slots" plug-in module and pairs with the Agilent Mainframes 8163A/B, 8164A/B and 8166 A/B.
Additional Information
Specifications at a glance for the 81576A:
- Connectivity: Straight Connector, Versatile Interface
- Fiber type: Singlemode 9/125um SMF28
- Wavelength Range: 1250-1650 nm
- Attenuation Range: 0-60 dB
- Resolution: 0.001 dB
- Accuracy: +/- 0.1dB
- Return Loss: typ. 45dB
- Maximum Input Power: +33 dBm
Additional Information
Two connector interfaces are required for each Agilent 81576A. Each connector is sold separately.
Contact us for details
