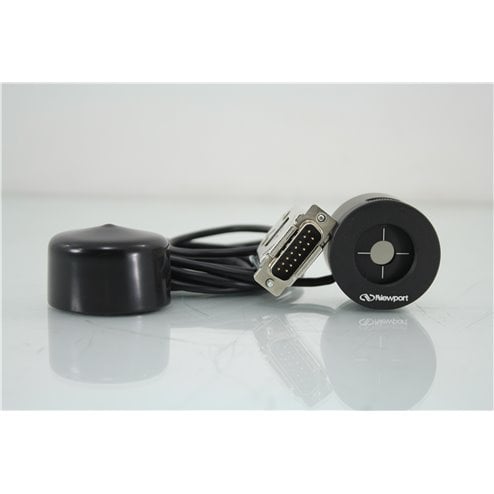

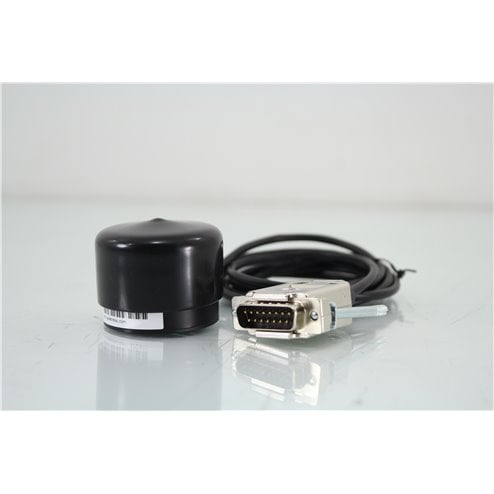

Newport 918D-IR-OD3R Optical Head
The 918D-IR-OD3 Germanium Photodetector for low optical power measurements. Features include integrated calibration-data storage, built-in OD3 attenuation filter with automatic On/Off detection, and temperature sensing electronics for temperature drift compensation. Germanium (Ge) photodetector NIST-traceable calibrated for 780-1800 nm optical power measurements. Compatible with DB15 based Newport Power Meters. Includes a certificate of calibration with calibration curves and data for both attenuator on and off conditions.
USD $425.00
Yes, we have
more than 5 in stock
Reference:
918D-IR-OD3R
Brand:
Newport 918D-IR-OD3R Germanium Detector (780-1800 nm)
Specifications
- Spectral Range: 0.7 to 1.8 µm
- Material: Germanium
- Maximum Power Densityx: 30 W/cm2
- Linearity: 0.5%
- Sensor size 3 mm
Calibration Module integrated in DB15 Connector Pigtail
DB15 connector
Fiber Adapter Mount and connector adaptor are not included.
