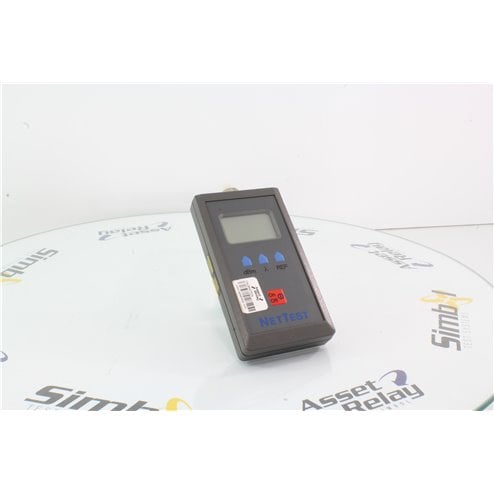

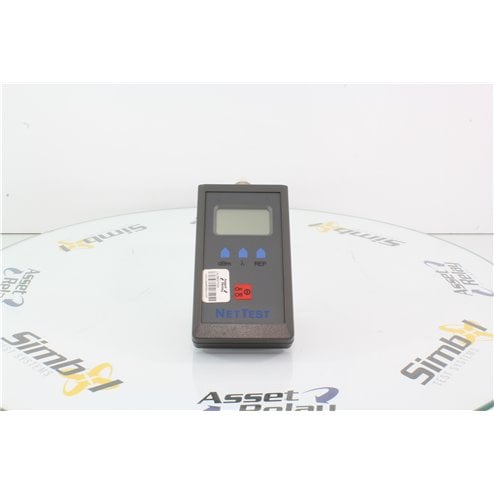

Nettest GN-6005 Optical Power Meter

The Nettest GN-6005 Optical Power Meter is a handheld, economical, and accurate device designed for attenuation and power throughput measurements on point-to-point fiber optic links. It is suitable for testing single-mode and multimode optical systems and is ideal for characterizing FTTx network compliance. Featuring a rugged design, it is built to withstand the challenging environments of fiber optic cable installation and maintenance. The GN-6005 offers a measurement range from +5 dBm to -70 dBm, supports calibrated wavelengths of 850, 1300, 1310, 1550, and 1625 nm, and provides high accuracy of ±0.25 dB (-20 dBm). Its compact size, long battery life, and auto power-off function make it a reliable tool for professionals working in fiber optic testing.
Read moreShow less

Request Pricing

5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
GN-6005
Brand:
Description

Nettest GN-6005 Optical Power Meter

GN Nettest 6005 Power Meter

The GN Nettest 6005 Series Power Meters are economical, accurate and easy-to-use handheld units for attenuation and power throughput measurements on point-to-point fiber optic links. These instruments are suitable for testing single-mode and multimode optical systems. Additionally the 6005 Series Power Meters are ideal for characterizing FTTx Network compliance. They feature a rugged design, built to withstand the difficult testing environment of fiber optic cable installation and maintenance. FC Connector.

Specifications

Detector Type InGaAs
Range +5 dBm to -70 dBm
Calibrated Wavelengths 850, 1300, 1310, 1550 &1625 nm
Accuracy ±0.25 dB (@-20 dBm)
Resolution 0.01 db
dB Reference Yes
Modulation Detection 2 kHz - Visual Indicator
Stability ±.01 dB
Display Indicators 4 Digit, 7-segment LCD
Low Battery Indicator Visual Indicator
Signal Over Range Visual Indicator
Auto Power Off Hourglass Indicator
Battery Life >100 hrs. continuous use
Connector Adapters FC, ST & SC
Power Two AA-Size or NiCd (opt)
NiCD Charger (opt.) 6 V, 300 mA
Operating Temperature 0 to +50 °C
Storage Temperature -40 to +60 °C
Size 6.3"H x 3.3"W x 1.3"D
Weight .49 lbs
