Photonetics 3650 HR 15  OSA

Photonetics 3650 HR 15 OSA

5 1
,
5/ 5
Yes, In-Stock !

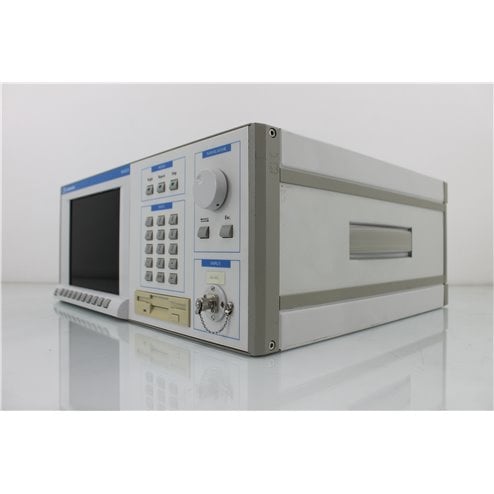

Photonetics 3650 HR15 Optical Spectrum Analyzer (OSA)1450 nm to 1650 nm, optomized for C+L-band

Specifications at a glance for the 3650 HR15

  • Wavelength range: 1450 nm to 1650 nm (Optimized for 1500 to 1620 nm)
  • Resolution bandwidth: 0.02 (Full), 0.1, 0.2, 0.5 and 1 nm
  • Wavelength absolute accuracy: +/- 0.04 nm
  • Wavelength repeatability: +/- 0.005 nm
  • Signal level linearity: +/- 0.01 dB
  • Signal level accuracy: +/- 0.5 dB
  • Dynamic range @ +/- 0.1 nm : > 52 dB
  • Dynamic range @ +/- 0.2 nm: > 57 dB
  • Dynamic range @ +/- 2 nm: > 75 dB
  • Polarization dependency: +/- 0.05 dB
  • Return loss: 35 dB
  • Sweep sensitivity:  Normal (10 nm/s), High 1 (1nm/s), High 2 (0.1 nm/s)
  • Data storage: Floppy disk and hard-disk
  • Remote control: GPIB, RS232
Photonetics
3650HR15
