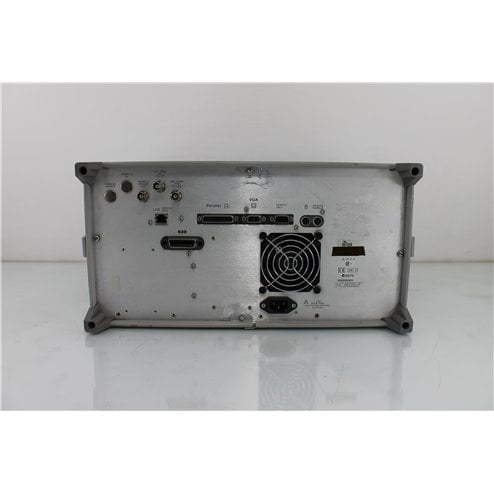

Agilent 86142A OSA opt 004, 006

The HP Agilent 86142A is an Optical Spectrum Analyzer (OSA) with Option 004: 1310/1550 nm EELED Sources (1250 nm to 1620 nm), > -60 dBm/nm and Option 006: Wavelength calibrator. The 8614xx series of optical spectrum analyzers provide fast, accurate, and comprehensive measurement capabilities for spectral analysis. Built-in applications allows fast, repeatable measurements for WDM systems, lasers, amplifiers, and passive components. The HP Agilent 86142A operating wavelength range is 600 nm-1700 nm. Many connectors types are available for this OSA

Click the PDF Specification for further information.

Read more
0.0
5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
86142A_004_006
Brand:
Description

Agilent 86142A High Performance Benchtop Optical Spectrum Analyzer (OSA) with option 006 and option 004

Specifications at a glance:

  • Wavelength Range: 600 nm to 1700 nm
  • Dynamic Range: -40 dB to -70 dB
  • Wavelength Accuracy: ± 3% to ± 10%
  • Wavelength Linearity: ± 0.05 nm
  • Wavelength Repeatability: ± 0.003 nm
  • Polarization Dependency: ± 0.12 dB to ± 0.25 dB

Additional Information

  • Option 006: Wavelength Calibrator Source
  • Option 004: 1310/1550 nm EELED Sources (1250 nm to 1620 nm)
  • Resolution Accuracy: 0.06; 0.1; 0.2; 0.5;1.2; 5,10 nm
  • Sweep Time: 180 ms

The 86142A is an Optical Spectrum Analyzer for a wide range of applications including light source evaluation, measurement of loss wavelength characteristics in optical devices and waveform analysis of WDM Systems.

Read more
Product Details
86142A_004_006
