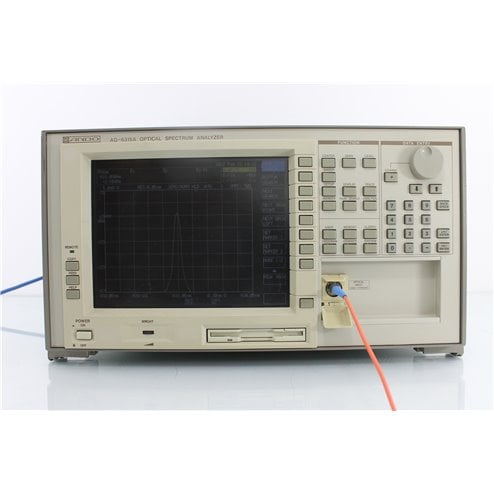

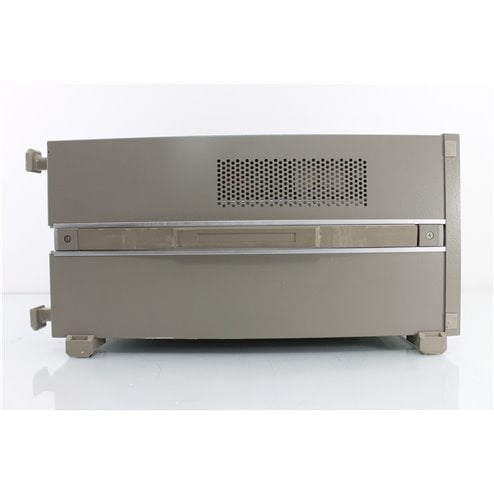

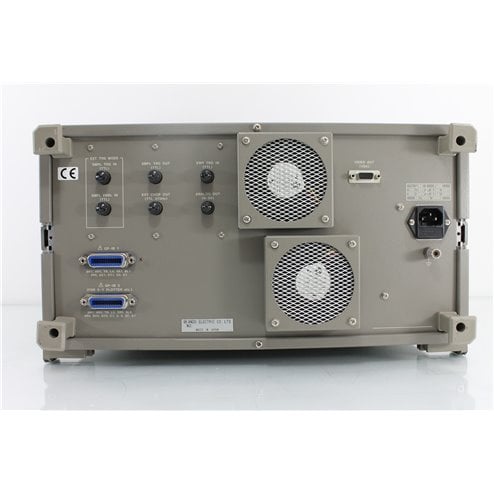

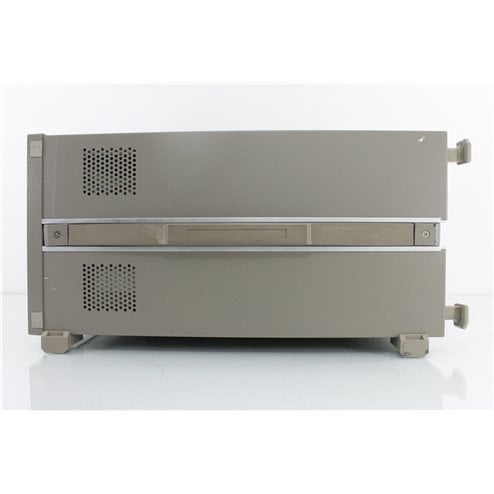

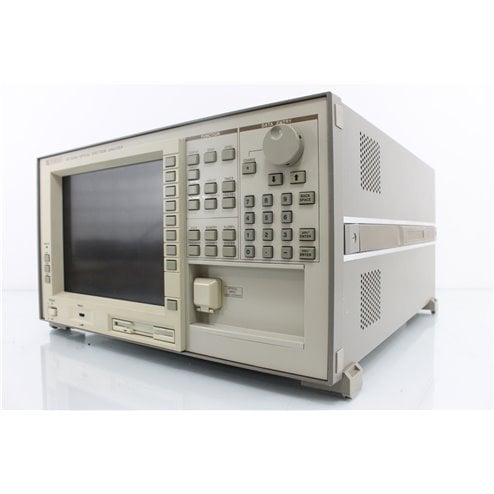

Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA)

Although the Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA) was released 2 decades ago, it stills brings advanced capabilities to perform optical analysis across a wide wavelength range (350-1750 nm). It's rare attribute is its ability to read in the visible range.  The Ando AQ6315A has a large dual pass monochromator which enables high resolution readings. This device delivers a wavelength accuracy of ±0.05 nm in the 1550nm area and a dynamic range up to 70dBm. Ideal for WDM, LED, and fiber optic applications, this visible range Optical Spectrum Analyzer (OSA) is perfect for professionals requiring reliable, high-sensitivity measurements with advanced functionality. Its user-friendly interface and diverse embedded analysis tools has kept it a trusted solution of signal analysis.

Download Ando AQ6315A SpecificationsDownload Ando AQ6315A Specifications

Download Ando AQ6315A User ManualDownload Ando AQ6315A User Manual

Read moreShow less

Request Pricing

5 1
,
5/ 5
Out-of-Stock
Condition
Used
Reference:
AQ6315A
Brand:
Ando
Description

Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA)

The Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA) is a full size OSA operating from a single-pass/double-pass monochromator (mode select). In single-pass monochromator mode, it supports the same wide range of applications as its predecessors. In double-pass monochromator mode, the dynamic range increases and the resolution also increases across the 350nm to 1750nm range.

At time of release, this OSA was built for professionals in optical research, telecommunications, and component testing, delivering very good accuracy and versatile performance. Whether you're evaluating light sources, assessing wavelength characteristics, or testing WDM devices, the AQ6315A shall meet your expectations.

Calibration of the Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA)

  • The Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA) is calibrated to OEM specifications prior to shipping.
  • Each unit includes a Calibration Certificate, ensuring traceable and reliable calibration results.
  • A Calibration Label is affixed to the device for quick verification of calibration status.
  • Detailed Calibration Data is provided to support accurate and precise measurements.
Specifications of the Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA)
Feature Details
Wavelength Range 350 nm to 1750 nm
Wavelength Accuracy ±0.05 nm (1510 to 1570 nm)
Wavelength Linearity ±0.02 nm (1510 to 1570 nm)
Dynamic Range Single-pass monochromator mode:

40dB (±1 nm, 633/1152/1523 nm)

35dB (±0.5 nm, 633/1152/1523 nm)

Double-pass monochromator mode:

70dB (±1 nm, 633/1152/1523 nm)

60dB (±0.5 nm, 633/1152/1523 nm)
Wavelength Repeatability ±0.005 nm
Polarization Dependency Single-pass monochromator mode:

±0.01 dB (1310 to 1550 nm)

Double-pass monochromator mode:

±0.05 dB (1310 to 1550 nm)
Wavelength Resolution 0.05 to 10 nm
Level Accuracy ±0.3dB (at 633/1310/1550 nm)
Level Linearity ±0.05dB (0 to -40dBm)
Sweep Time 0.5 s or less (span = 500 nm), 2.5 s or less (full span)
Max Input Power +20 dBm (100 mW)
Calibration Calibrated to OEM specifications, includes Certificate, Label, and Data
