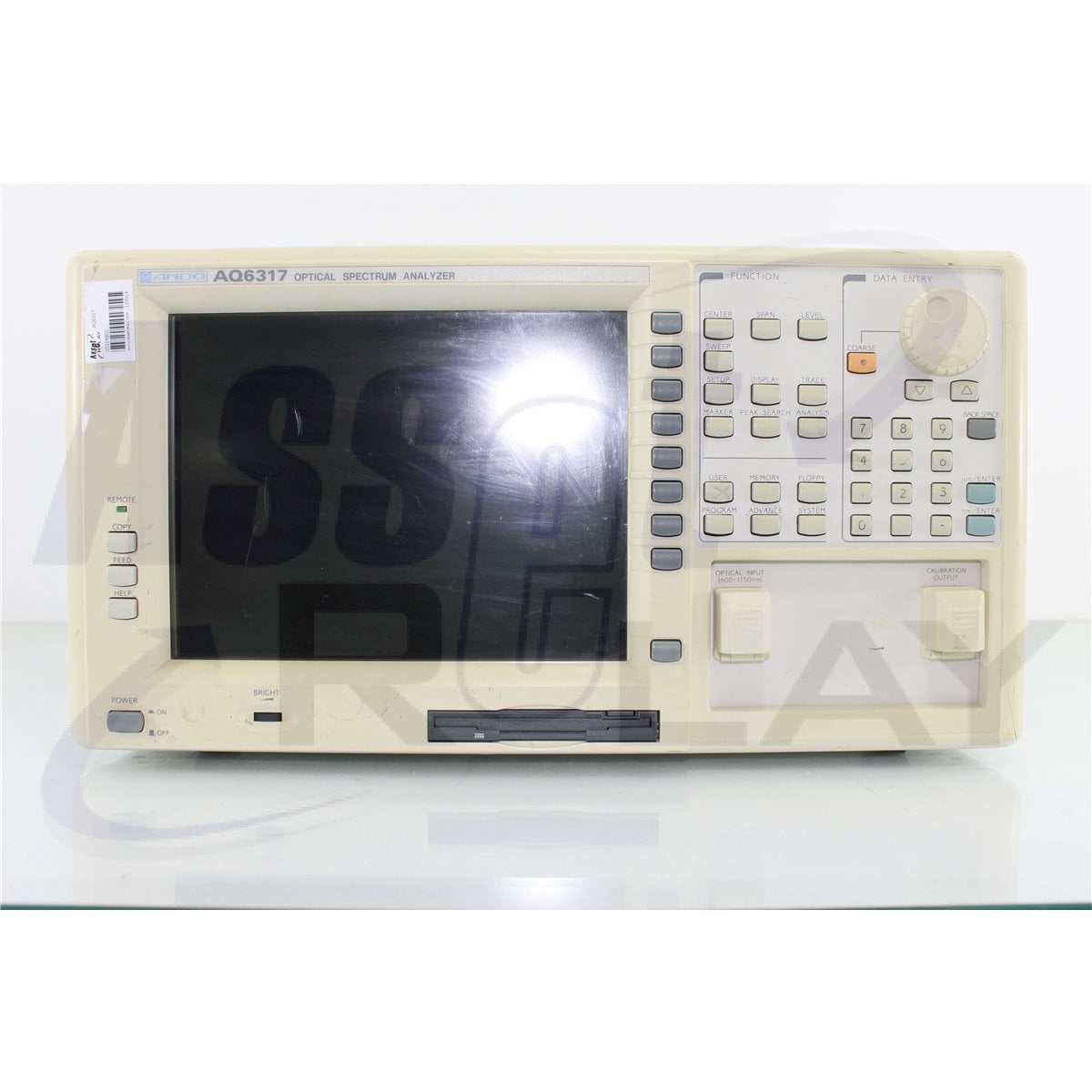

Ando AQ6317 Optical Spectrum Analyzer

Ando AQ6317 Optical Spectrum Analyzer

The Ando AQ6317 Optical Spectrum Analyzer is the predecessor to the Ando AQ6317B renown as the benchmark of OSAs. The Ando AQ6317 is suitable to evaluate optical devices for WDM. Wavelength Range is from 600 to 1750 nm with a Dynamic Range of 60 dB and an absolute Wavelength Accuracy of ± 0.5 nm across the entire range. The fiber input is "in air" which allows for connection of many different kinds of fiber.

Click the PDF Specification for further information.

Yes, In-Stock !

Ando AQ6317 Optical Spectrum Analyzer (OSA)


Specs at a glance for the AQ6317


- Wavelength Range: 600 to 1750 nm

- Dynamic Range: 60 dB (1523 nm, peak: ± 0.2 nm,
resolution: 0.01 nm)

- Wavelength Accuracy: ± 0.5 nm (600 to 1750 nm)

- Wavelength Linearity: ±0.01 nm

- Wavelength Repeatability: ±0.005 nm

- Polarization Dependency: ± 0.05 dB (1550 nm)

Additional Information

- Wavelength Resolution: Resolution setting: 0.01, 0.02, 0.05, 0.1, 0.2,
0.5, 1.0, 2.0 nm

- Resolution Accuracy: ± 5 %

- Level Accuracy: ± 0.3 dB

- Level Linearity: ± 0.05 dB

- Sweep Time: Approx. 500msec.

The AQ6317 is an Optical Spectrum Analyzer for a wide range of applications including light source evaluation, measurement of loss wavelength characteristics in optical devices and waveform analysis of WDM Systems.

Ando
AQ6317
