Agilent 86146B OSA opt 006

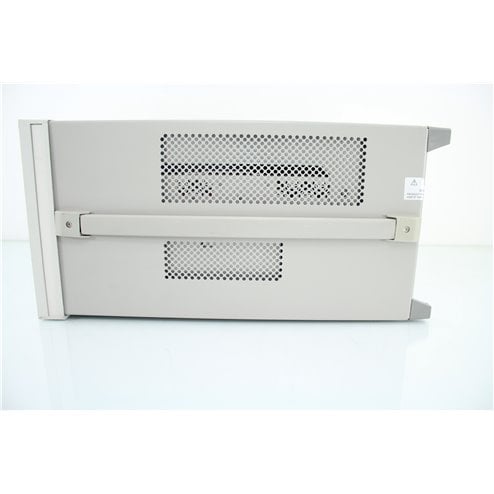

The HP Agilent 86146B is a portable Optical Spectrum Analyzer (OSA). The 8614xx series of optical spectrum analyzers provide fast, accurate, and comprehensive measurement capabilities for spectral analysis. Built-in applications allows fast, repeatable measurements for WDM systems, lasers , amplifiers, and passive components. The HP Agilent 86146B operating wavelength range is 600 nm - 1700 nm and this unit includes option 006: Wavelenght Calibrator. Many connectors types are available for this OSA

Click the PDF Specification for further information.

Yes, In-Stock !

HP 86146B High Performance Benchtop Optical Spectrum Analyzer (OSA) with filter mode monochromator output and option 006: Wavelenght Calibrator

Specs at a glance:

  • Wavelength Range: 600 nm to 1700 nm
  • Dynamic Range: -60 dB (at ± 0.8 nm (± 100 GHz at 1550 nm))
  • Wavelength Accuracy: Typ ± 0.01 nm (1480-1570 nm)
  • Wavelength Linearity: Typ ± 0.01 nm (1525-1570 nm)
  • Wavelength Repeatability: ± 0.002 nm
  • Polarization Dependency: ± 0.12 dB (1310 nm)
  • Option 006: Wavelenght Calibrator

Additional Information

- Resolution Accuracy: ± 3% (0.2 nm)
- Sweep Time: Typ < 180 ms (50 nm span, auto zero off)

     The 86146B is an optical Spectrum Analyser for a wide range of applications including light source evaluation, measurement of loss wavelength characteristics in optical devices and waveform analysis of WDM Systems.
