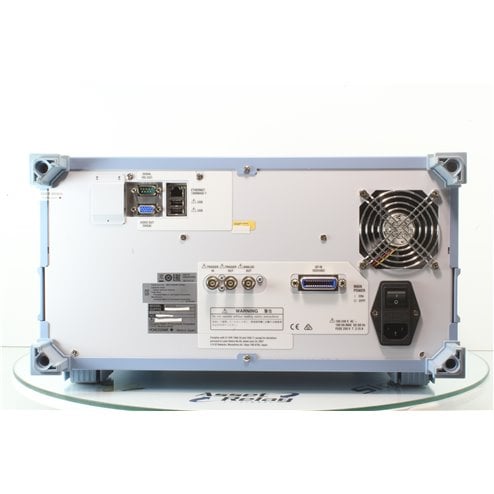

Yokogawa AQ6370D OSA

The Yokogawa AQ6370D with option 10 (Standard) OSA is a high-performance optical spectrum analyzer that covers a wide wavelength range from 600nm to 1700nm. It is suitable for both telecom and general purpose applications, such as testing optical devices, components, and systems. The AQ6370D-10 OSA offers high accuracy, resolution, and speed, as well as a user-friendly interface and various analysis functions. It is one of the most Yokogawa’s popular carrier-grade OSA, with option 10 (Standard) that includes a built-in calibration source and a high-power optical input function.

Yokogawa AQ6370D DatasheetDownload Yokogawa AQ6370D Datasheet

Yokogawa AQ6370D User ManualDownload Yokogawa AQ6370D User Manual

Read moreShow less
USD $36,500.00
5 1
5/ 5
Yes, we have 1 in stock

If you are looking for a reliable and versatile optical spectrum analyzer, look no further than the Yokogawa AQ6370D with option 10 (Standard) OSA. This instrument is one of most popular Telecom class OSA from Yokogawa and it offers a universal wavelength range of 600nm to 1700nm that is ideal for both telecom and general purpose applications.

The AQ6370D-10 OSA has many features that make it stand out from other optical spectrum analyzers in the market. Some of these features are:

  • Wavelength range: 600 to 1700nm
  • High wavelength accuracy: ±0.01nm
  • High wavelength resolution: 0.02nm
  • Wide dynamic range: 78dB typ.
  • Wide level range: +20 to -90dBm
  • Fast measurement: 0.2 sec. (100nm span)
  • Applicable to single-mode and multimode fibers

The AQ6370D OSA also has a user-friendly interface that allows you to easily operate the instrument and view the measurement results. You can choose from various display modes, such as spectrum, waveform, list, and histogram, and customize the screen layout according to your preference. You can also use the touch screen, mouse, or keyboard to control the instrument.

The AQ6370D OSA has various analysis functions that help you evaluate the optical characteristics of your devices, components, and systems. Some of these functions are:

  • WDM analysis: Calculates the OSNR, peak wavelength, and channel spacing of WDM signals
  • SMSR analysis: Measures the side mode suppression ratio of laser diodes
  • NF analysis: Measures the noise figure of optical amplifiers
  • DFB-LD analysis: Analyzes the chirp characteristics of DFB-LDs
  • EDFA analysis: Analyzes the gain and noise characteristics of EDFAs
  • LED analysis: Analyzes the spectral width and center wavelength of LEDs
  • FP-LD analysis: Analyzes the mode hop and mode partition of FP-LDs
  • Optical filter analysis: Analyzes the insertion loss and bandwidth of optical filters

The AQ6370D OSA comes with option 10 (Standard) that includes a built-in calibration source and a high-power optical input function. The built-in calibration source allows you to calibrate the instrument without using an external light source, and the high-power optical input function enables you to measure high-power optical signals up to +23dBm without an optical attenuator.

The Yokogawa AQ6370D OSA is a powerful and versatile optical spectrum analyzer that can meet your various measurement needs. You can buy it at here, a trusted online marketplace for buying and selling new used test equipment. AssetRelay offers competitive prices, fast shipping, and excellent customer service.

Please note that prior to shipping a premium calibration will be performed to assure that the OSA meets or exceeds manufacturers published specifications. The equipment will be shipped with calibration sticker, calibration certificate and calibration data including previous and after calibration data (7 pages of data).
