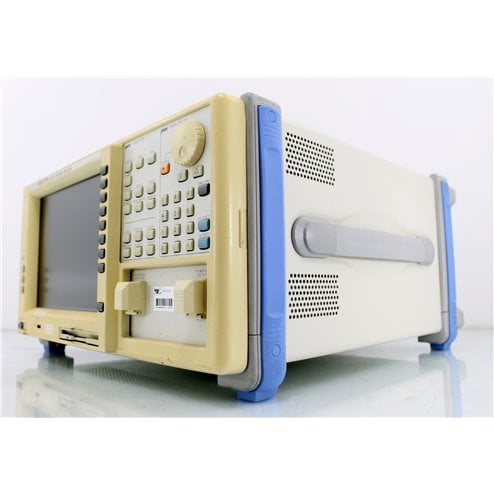

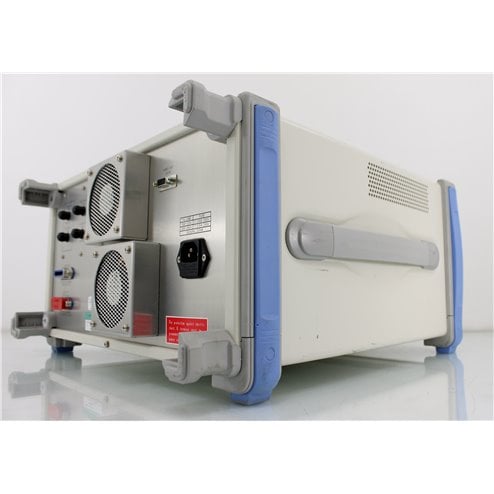

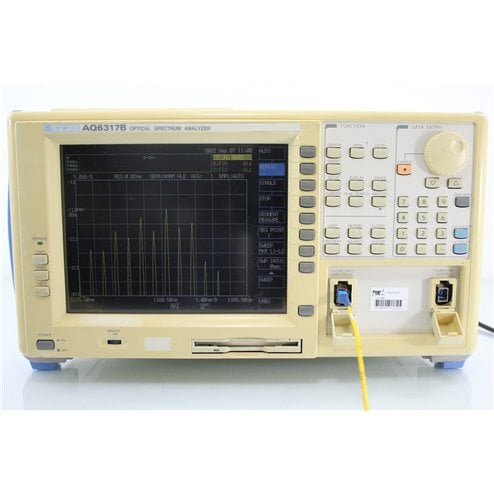

Ando (Yokogawa) AQ6317B Optical Spectrum Analyzer (OSA) with SC connectors: High Precision for Complex Optical Testing
The Ando (Yokogawa) AQ6317B Optical Spectrum Analyzer (OSA) is an advanced solution for professionals who require high-precision and reliable optical measurements. Engineered with enhanced wavelength accuracy and sensitivity, this device is ideal for applications in WDM (Wavelength Division Multiplexing) systems, light source evaluations, and comprehensive waveform analysis. Its broad wavelength range and high-resolution capabilities ensure accurate, dependable measurements for diverse optical testing needs.

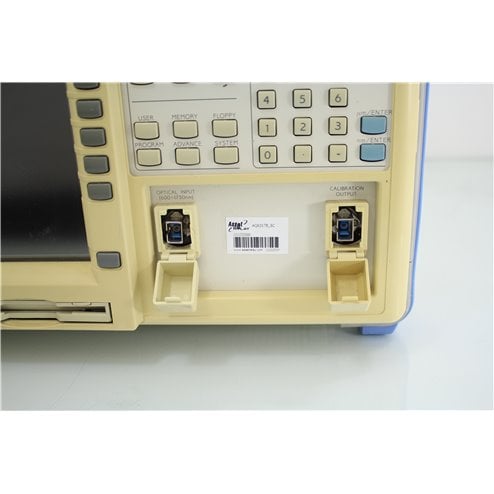

This OSA has SC Connectors.
SC connectors are reliable fiber optic connectors widely used in telecommunications and data networks. With a simple push-pull design, they provide secure connections and support both single-mode and multimode fibers, ensuring high-quality signal transmission. Their square shape allows for space-efficient installation in patch panels, making them ideal for dense networking environments. Known for durability and low insertion loss, SC connectors are a trusted choice for stable, high-performance connections across various applications.
Specifications for the Ando (Yokogawa) AQ6317B Optical Spectrum Analyzer (OSA)
| Specification |
Details |
| Wavelength Range |
600 nm to 1750 nm |
| Wavelength Accuracy |
± 0.02 nm (1520 to 1580 nm)
± 0.04 nm (1580 to 1620 nm)
± 0.5 nm (600 to 1750 nm) |
| Wavelength Linearity |
±0.01 nm (1250 to 1580 nm) |
| Dynamic Range |
60 dB (1523 nm, peak ±0.2 nm, resolution: 0.01 nm) |
| Wavelength Repeatability |
±0.005 nm |
| Polarization Dependency |
±0.05 dB (1550/1600 nm)
±0.05 dB (1310 nm) |
| Wavelength Resolution |
0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1.0, 2.0 nm |
| Resolution Accuracy |
±5% |
| Level Accuracy |
±0.3 dB |
| Level Linearity |
±0.05 dB |
| Sweep Time |
Approx. 500 msec |
| Calibration |
Calibrated to OEM specifications, includes Certificate, Label, and Data |
Reliable Design and User-Friendly Features
The Ando AQ6317B is crafted for durability and ease of use. With built-in self-calibration using a reference light source, it ensures consistent accuracy without manual recalibration. Additionally, the device supports multi-trace memory, simultaneous display of three independent traces, and long-term data analysis, making it an indispensable tool for professionals in optical testing environments.
Ideal for Professional Applications
The Ando (Yokogawa) AQ6317B is a valuable choice for labs, research facilities, and industrial applications that demand precise optical spectrum analysis. Its comprehensive capabilities, combined with high sensitivity and low polarization dependency, make it well-suited for evaluating optical devices, measuring complex waveforms, and performing detailed WDM analysis.
With the Ando AQ6317B Optical Spectrum Analyzer, professionals gain a reliable, versatile tool that simplifies advanced optical measurement tasks while delivering exceptional accuracy and efficiency. It’s a trusted choice for anyone looking to enhance their optical testing standards.
Difference between Ando (Yokogawa) AQ6317 and AQ6317B Optical Spectrum Analyzer (OSA)
The Ando (Yokogawa) AQ6317 and AQ6317B Optical Spectrum Analyzers share similar functionalities but differ primarily in their accuracy, sensitivity, and advanced analysis features:
- Wavelength Accuracy:
- AQ6317: Offers wavelength accuracy of ±0.05 nm in the 1550 nm band.
- AQ6317B: Improves upon this with enhanced wavelength accuracy of ±0.02 nm in the 1520 to 1580 nm range and ±0.04 nm in the 1580 to 1620 nm range, making it better suited for high-precision applications, especially in the C- and L-bands.
- Dynamic Range:
- AQ6317: Provides a dynamic range of 60-70 dB, ideal for high-density measurements.
- AQ6317B: Maintains a similar range but adds capabilities for more refined analysis in 50 GHz WDM systems, supporting complex applications with greater precision.
- Analysis Functions:
- AQ6317: Includes basic analysis functions for general WDM, LD, and LED applications.
- AQ6317B: Adds advanced features like notch width analysis, multi-channel noise figure (NF) analysis, and optical filter analysis, expanding its use for detailed optical evaluations and enhanced WDM analysis.
- Sensitivity:
- Both models offer high sensitivity, with a detection range down to -90 dBm. However, the AQ6317B is optimized for slightly more sensitive measurements over broader wavelength ranges.
- Sweep Speed:
- AQ6317B has an improved sweep speed, allowing faster data collection and analysis compared to the AQ6317, which is beneficial in environments requiring rapid measurements.
In summary, the AQ6317B is an upgraded version of the AQ6317, with improved wavelength accuracy, additional analysis functions, and faster sweep speeds, making it ideal for more complex and precise optical spectrum analysis tasks.
