Anritsu MS9740A OSA GPIB Cal

The Anritsu MS9740A is a diffraction-grating optical spectrum analyzer for analyzing optical spectra in the wavelength band 600 to 1750 nm. The MS9740A is the fourth generation of the MS9710 series from Anritsu. The MS9740A has numerous pre programmed measurement functions and can be equipped with options such as internal calibration source. The input is fibered (not air).
Yes, In-Stock !

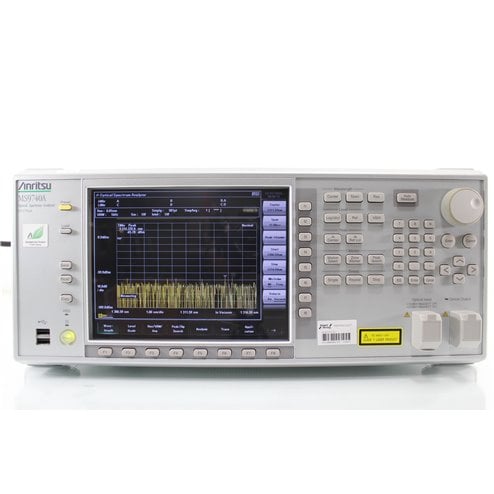

Anritsu MS9740A Optical Spectrum Analyzer (OSA) FC/PC (option 037)


Specifications for the MS9740A

- Wavelength Range: 600 to 1750 nm
- Dynamic Range: 70 dB (1 nm from peak wavelength)
- Wavelength Accuracy: ±300 pm (600 to 1520nm)
- Wavelength Linearity: ±20 pm (1520 to 1620 nm)
- Polarization Dependency: ±0.05 dB (1550/1600 nm)
- Option 01 GPIB and Option 02 Calibration cell


Additional Information

- Resolution Accuracy: ±2.2% (1520 to 1620 nm, resolution: 0.5 nm)
- Level Accuracy: ±0.4 dB (1310/1550 nm, input: -10 dBm, resolution: >0.1 nm)
- Level Linearity: ±0.05 dB (1550 nm, –30 to 20 dBm, optical ATT: off)

  The MS9740A is an Optical Spectrum Analyzer for a wide range of applications including light source evaluation, measurement of loss wavelength characteristics in optical devices and waveform analysis of WDM Systems.
