Yokogawa AQ6360 OSA

The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers.

The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.

Read more
0.0
5 1
,
5/ 5
Yes, we have 2 in stock
Condition
Used
Reference:
AQ6360
Brand:
Description

All our inventory is accurate and updated in real-time. If this website says we have the item in stock, we do.

Item : AQ6360

Calibration type : Premium Calibration included

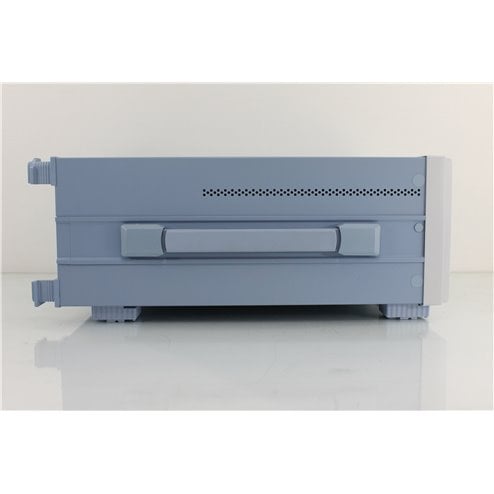

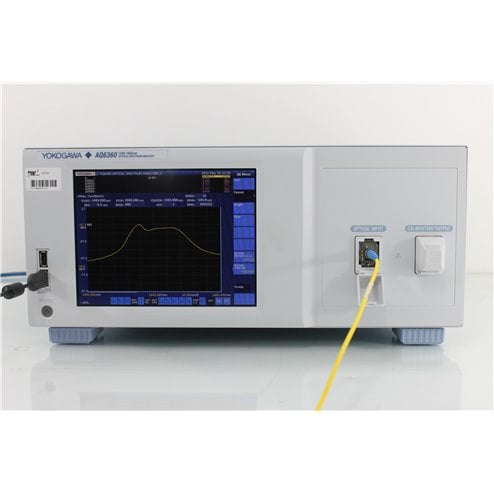

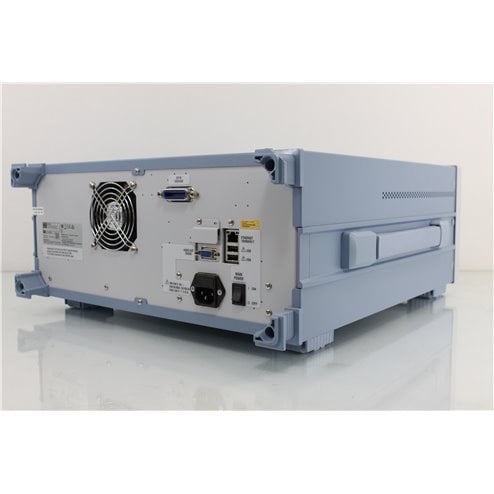

  • Unit pictured is from our stock, actual unit might look different. Contact us for picture of the unit we would ship you.
  • Applicable fiber : SM (9.5/125µm), GI (50/125µm, 62.5/125µm)
  • Wavelength range : 1200 to 1650nm
  • Span : 0.1 to 450nm (entire wavelength range)
  • Wavelength accuracy : ±0.02nm (1520 to 1580nm, 1580 to 1620nm)
  • Wavelength repeatability : ±0.01 nm (1 min.)
  • Wavelength resolution setting : 0.1, 0.2, 0.5, 1 and 2nm
  • Wavelength resolution : bandwidth accuracy ±5%
  • Minimum sampling resolution : 0.001nm
  • Number of sampling points : 101 to 50001, AUTO
  • Level sensitivity setting :NORM_HOLD, NORM_AUTO, NORMAL, MID, HIGH1 AND HIGH2
  • Level linearity : ±0.1 dB (input level: -50 to + 10 dBm, sensitivity: MID, HIGH1-2)
  • Level flatness : ±0.2 dB (1520 to 1580nm, 1580 to 1620nm)
  • Polarization dependence : ±0.1 dB (1550nm)
  • Dynamic range : 55 dB (Peak ±0.4nm), 40 dB (Peak ± 0.2nm) (Resolution: 0.1 nm)
  • Optical return loss : 35 dB (typ. with angled-PC connector)
  • Optical input connector : FC or SC
  • Built-in calibration light source (option) : Wavelength reference source (for wavelength calibration)
  • Sweep time : NORM_AUTO: 0.2s, NORMAL: 0.5s, MID: 1s, HIGH1: 2.5s, HIGH2: 10s
  • Warm-up time : Minimum 1 hour (after warm-up, the wavelength calibration is required)
  • Electrical interface : GP-IB, USB, Ethernet (TCP/IP), AQ6317 series compatible commands (IEEE488.1) and IEEE488.2
  • Payment : All orders are prepaid. We accept wire transfers or Paypal. For orders above 3000 USD with Paypal, administrative fees will be added.

    Warranty : 30-day warranty.

    Shipping : Worldwide shipping. Contact us for a shipping quote.

    Shipping terms : FCA. Buyer is responsible for any insurance, duties or taxes.
    We can also ship on your preferred carrier account.

    Warranty fine print : Note that this is not a Right of Return.  We will only accept a return if the unit is defective within the warranty period.  Return shipping is at your cost and prepaid. Warranty shall become null and void should it be determined that the equipment was subjected to undue abuse, involved in any mishap, incorrectly wired and/or used/maintained in a manner contrary to the manufacturer's published instructions. Warranty period starts upon reception of the item at the delivery place.
