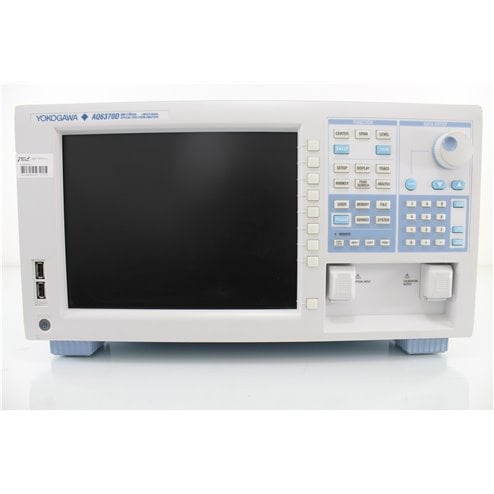

The Yokogawa AQ6370D with OPT01 (Limited) and L1 (Light source) Optical Spectrum Analyzer (OSA) is an instrument designed for both telecommunications and general-purpose applications. With a versatile wavelength range of 600 nm to 1700 nm, it accommodates single-mode and multi-mode fibers. The unique free space input design allows testing of DWDM class single-mode and VCSEL sourced multi-mode fibers in one model. Newly added functions include data logging, gate sampling, resolution calibration, an advanced marker function, and an enhanced auto-sweep mode.

Download Yokogawa AQ6370D-01-L1 Specifications PDFDownload Yokogawa AQ6370D Specifications

Read moreShow less

Request Pricing

5 1
,
5/ 5
Out-of-Stock
Reference:
AQ6370D-01-L1
Brand:
Yokogawa
Description
Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA): Unmatched Precision and Reliability

The Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA) is the latest iteration of his generation of OSA. Engineered with cutting-edge technology, it offers versalite accuracy of ±0.02 nm and a dynamic range of 71 dB. It supports a wide range of applications, from telecommunications to advanced photonics research. With a comprehensive calibration process included, this OSA is ready to deliver reliable and accurate results right out of the box.

Whether you’re in R&D, production, or field testing, the AQ6370D-01-L1 is a trusted partner for high-precision optical spectrum analysis.

Specifications of Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA)
Specification Details
Wavelength Range 600 nm to 1700 nm
Wavelength Accuracy ±0.02 nm (1520 to 1620nm)
±0.1 nm (full range)
Wavelength resolution 0.05, 0.1, 0.2, 0.5, 1.0 and 2.0nm
Dynamic Range 43dB (±0.2nm from peak, resolution 0.05nm)
61dB (±0.4nm from peak, resolution 0.05nm)
71dB (±1.0nm from peak, resolution 0.05nm)
Sensitivity -90 dBm (1300 to 1620nm, resolution 0.05nm or wider)
-85 dBm (1000 to 1300nm, resolution 0.05nm or wider)
-60 dBm (600 to 1000nm, resolution 0.05nm or wider)
Max input power +20dBm (Per channel, full span)

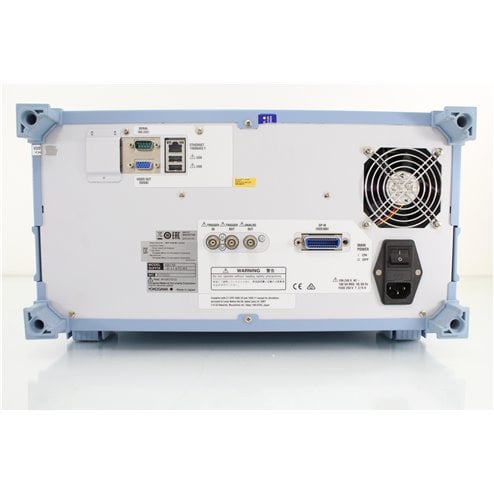

Interfaces GPIB, RS-232C, USB, Ethernet
Calibration Calibrated to OEM specifications, includes Certificate, Label, and Data

Calibration Process of Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA)

At our facility, every Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA) undergoes a meticulous calibration process to ensure it meets both OEM specifications and the highest industry standards. Our process includes:

  • Comprehensive Inspection: Each unit is thoroughly inspected for physical and functional integrity, identifying any components that require repair.
  • Component Replacement: Only genuine, high-quality parts are used to replace any defective components, restoring the unit to optimal performance.
  • Calibration to OEM Standards: Every unit is calibrated using precision instruments, aligning with OEM specifications for accuracy and reliability.
  • Documentation and Certification: Each unit is shipped with a Calibration Certificate, Calibration Label, and detailed calibration data, providing complete traceability and assurance of performance.
  • Final Quality Check: A rigorous final testing phase verifies that the unit performs flawlessly across all specified parameters before it is approved for shipment.

Our dedication to quality ensures that the Yokogawa AQ6370D-01-L1 Optical Spectrum Analyzer (OSA) you receive operates as reliably and accurately as a brand-new unit, making it a trusted tool for your critical applications.
