Photoncom 1x48 Optical Switch

Discover the PhotonCom Optical Switch: Precision and Performance

Introducing the PhotonCom Optical Switch, a cutting-edge solution designed for seamless integration into your network infrastructure. This robust device is engineered to deliver exceptional performance and reliability, making it an essential component for any advanced communication system.

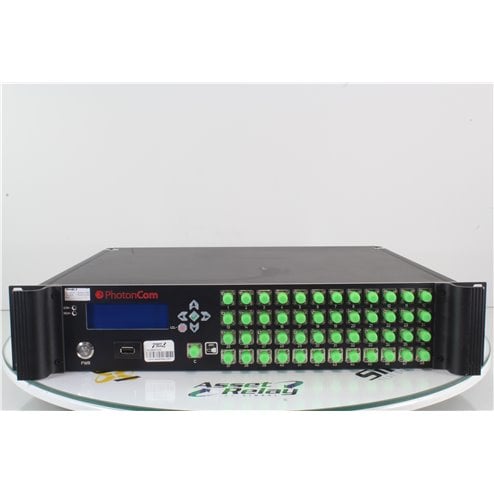

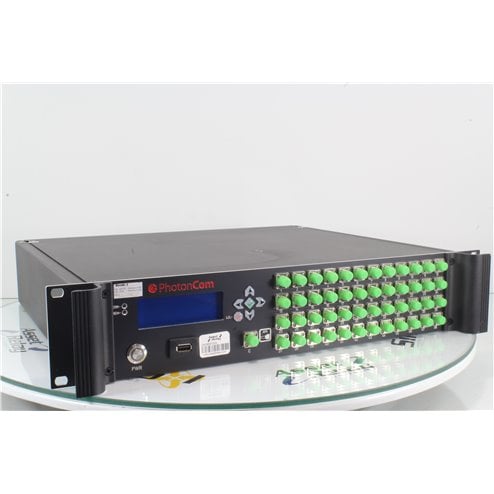

With its sleek design, the PhotonCom Optical Switch features an intuitive interface that simplifies operation. The front panel is equipped with a clear LCD display and user-friendly navigation buttons, allowing for easy configuration and monitoring. The array of green connectors ensures quick and secure connections, minimizing downtime and maximizing efficiency.

Key benefits of the PhotonCom Optical Switch include:

• High Capacity: With numerous ports available, this switch can handle extensive data traffic, ensuring smooth and uninterrupted communication.
• Easy Integration: Designed for compatibility, it fits effortlessly into existing systems, reducing setup time and complexity.
• Durable Construction: Built to last, this device withstands the demands of high-performance environments, providing long-term value.
• Energy Efficient: The switch is engineered to consume minimal power, contributing to a greener, more sustainable operation.
• Wavelength Range: 1260nm to 1640nm
• Insertion Loss: 1.2dB Typical, < 2.5dB max
• Crosstalk: -75dB typical, -60dB max
• Return Loss: 35dB with straight connector, 50dB APC
• Switching time (adjacent channels): 180ms typical
• Repeatability (after 100 cycles): 0.002dB typical, 0.01dB max
• Polarization Dependant Loss: 0.05dB typical, 0.12 dB max
• Durability: Over 1 billion cycles without degradation
• Maximum Input Optical power: 27dBm (500mW)
• Fiber Type: Single Mode 9/125 um

Whether you're upgrading your current setup or building a new network, the PhotonCom Optical Switch is your go-to solution for reliable and efficient data management. Experience the difference in quality and performance today.

Ready to enhance your network? With PhotonCom Optical Switch take the first step towards superior connectivity!
