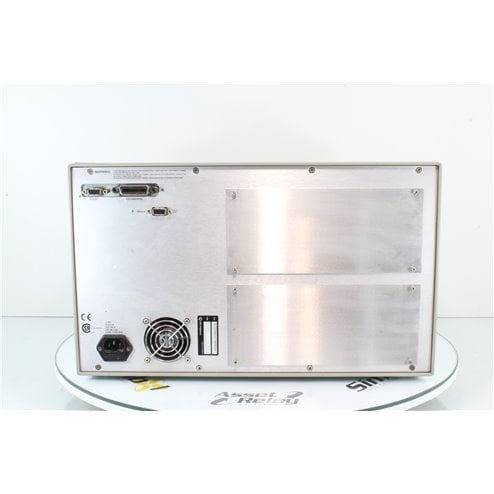

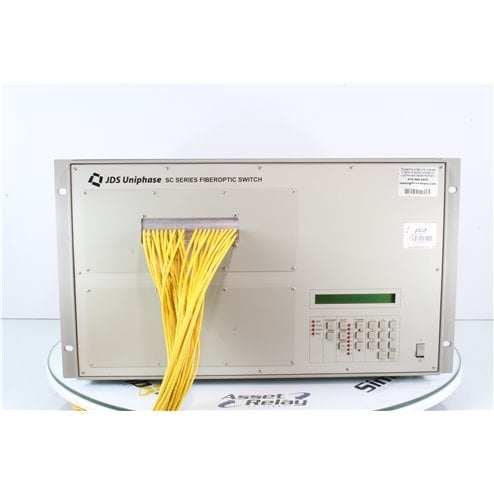

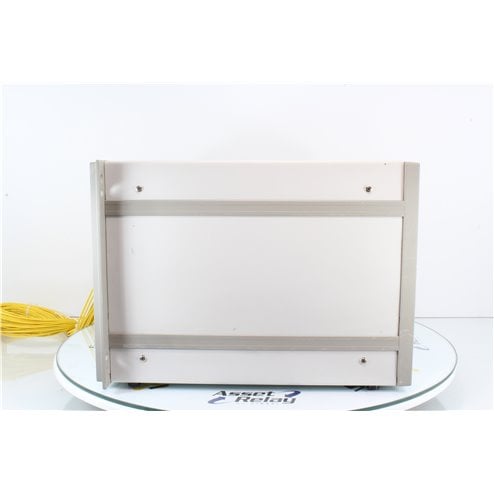

JDS (JDS Fitel/JDSU) 9/125 µm Optical Switch 2x48 Pigtails SC

The JDS 9/125 µm Optical Switch 2x48 Pigtails SC series is a high-performance fiber optic switch designed for precise and reliable optical signal routing. This switch utilizes expanded beam lens technology, ensuring minimal insertion loss and excellent repeatability. It features SC connectors and 9/125 µm single-mode fiber, making it ideal for applications requiring low-loss optical switching. The device is equipped with a precision stepper motor for accurate alignment of optical channels, and its internal temperature control enhances operational stability. The SC series offers multiple configurations, including non-blocking and blocking modes, allowing flexible connectivity options. It can be controlled via front panel keys, GPIB, or RS232 interface, making it suitable for both benchtop and rack-mounted setups. PDF Specification
Read moreShow less
USD $4,360.00
5 1
,
5/ 5
Yes, we have more than 5 in stock
Condition
Used
Reference:
SC2F30483-27XFF
Brand:
Description

JDSU 9/125 um Optical Switch 2 x 48 Pigtails

Model Number SC2F30483+27XF003FP

Description of the SC2F30483+27XF003FP:

  • Switch Configuration: 2 x 48, 2 input channels, F configuration
  • Input Port Type: Pigtails on front
  • Output Port Type: Pigtails on front
  • Number of Output Channels: 48 output channels
  • Fiber Type: Singlemode 9/125 µm
  • Return Loss: Standard
  • Wavelength Range: 1270 nm - 1670 nm
  • Cable Length: 3 m (3 mm diameter)
  • Connector Type: FC/PC
  • Remote Command: GPIB & RS-232

For more information please contact us !!
