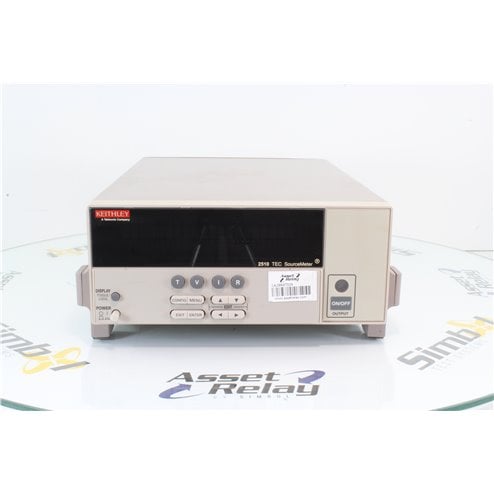

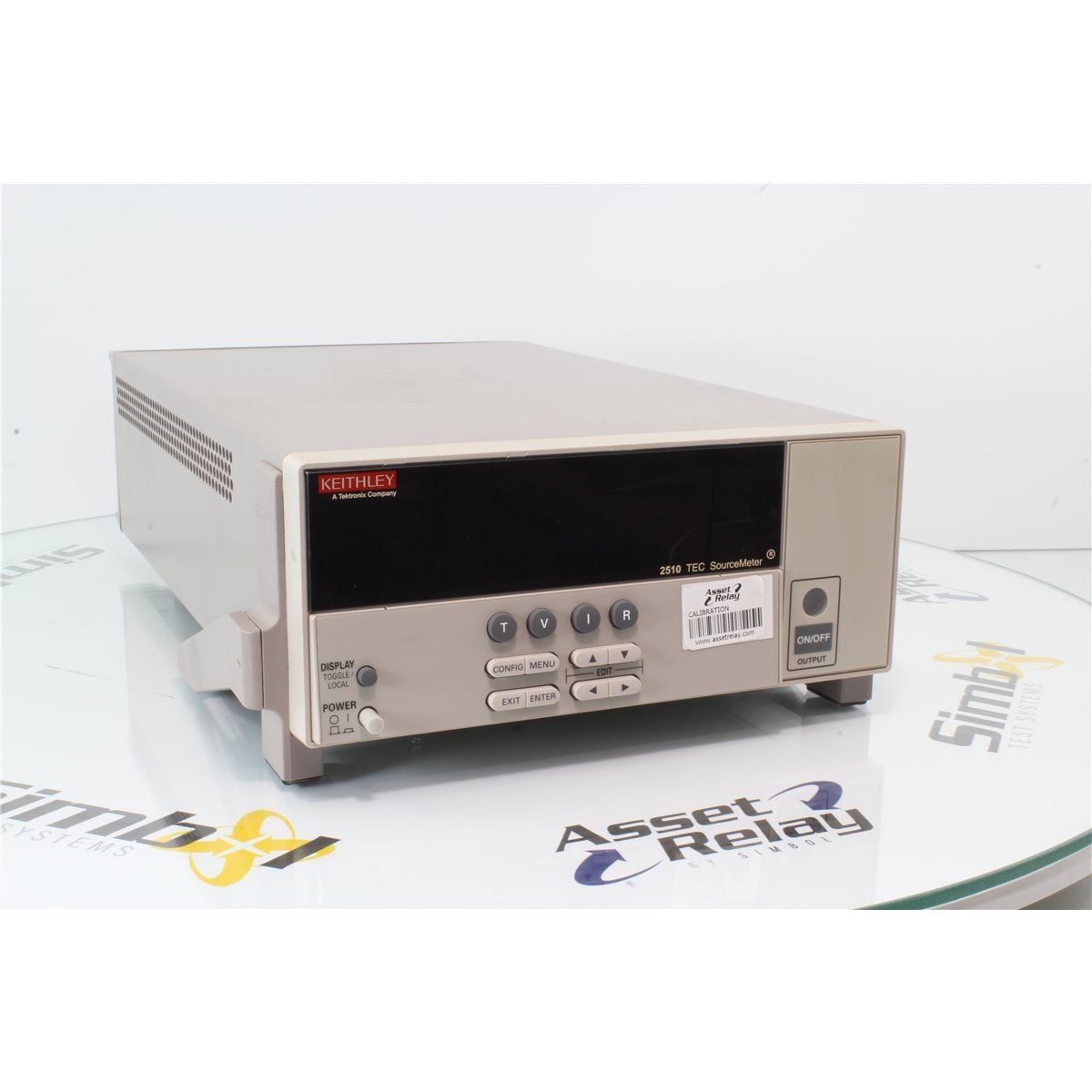

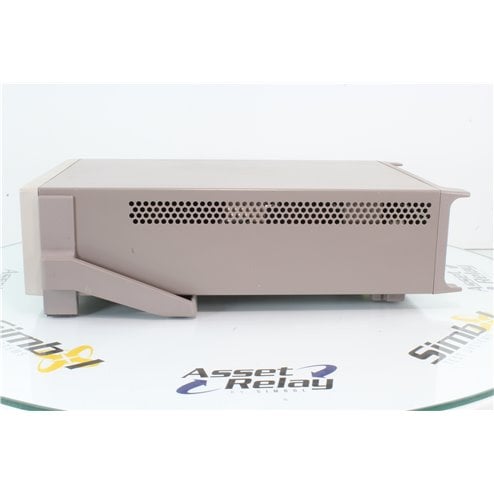

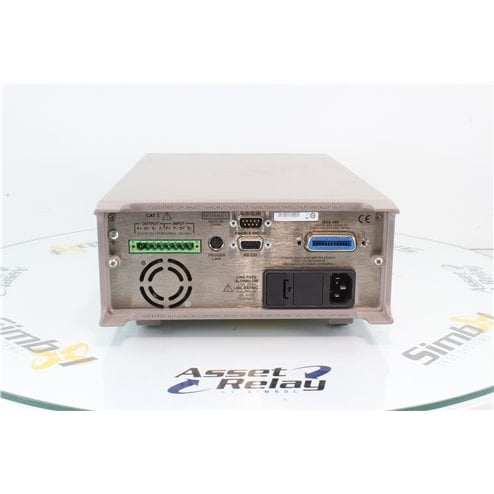

Keithley 2510 Source Meter

The Models 2510 and 2510-AT TEC SourceMeter instruments enhance Keithley’s CW (Continuous Wave) test solution for high speed LIV (light-current-voltage) testing of laser diode modules. These 50 W bipolar instruments were developed in close cooperation with leading manufacturers of laser diode modules for fiberoptic telecommunications networks. Designed to ensure tight temperature control for the device under test, the Model 2510 was the first in a line of highly specialized instruments created for telecommunications laser diode testing. It brings together Keithley’s expertise in high speed DC sourcing and measurement with the ability to control the operation of a laser diode module’s ThermoElectric Cooler or TEC sometimes called a Peltier device) accurately.

The Model 2510-AT expands the capability of the Model 2510 by offering autotuning capability. P, I, and D (proportional, integral, and derivative) values for closed loop temperature control are determined by the instrument using a modified Zeigler-Nichols algorithm. This eliminates the need for users to determine the optimal values for these coefficients experimentally. In all other respects, the Model 2510 and Model 2510-AT provide exactly the same set of features and capabilities.

Read more
5 1
,
5/ 5
Yes, we have 6 in stock
Condition
Used
Reference:
2510
Brand:
Description

Specifications at a glance:

The Model 2510 TEC SourceMeter Instrument is designed to:

  • Control the power to the TEC to maintain a constant temperature, current, voltage, or thermistor resistance.
  • Measure the resistance of the TEC
  • Provide greater control and flexibility through a software P-I-D loop.
