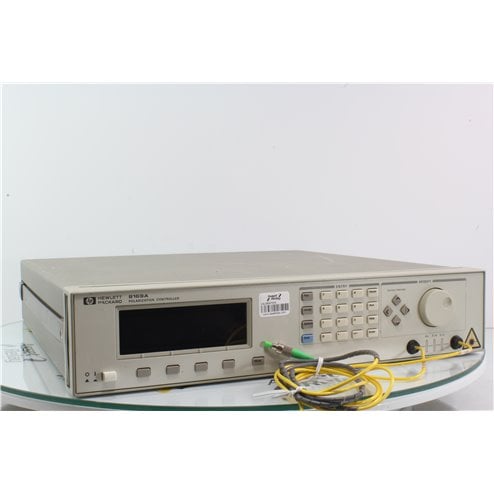

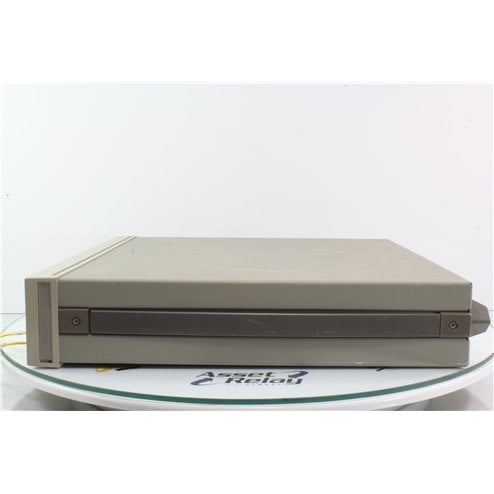

Agilent 8169A Polarization Controller

The HP Agilent 8169A option 020 is a Singlemode Pigtailed Fiber (SM) fibered Polarization Controller that enables automatic polarization state adjustments for measurements of polarization dependent loss (PDL) and polarization mode dispersion (PMD) and for polarization synthesis applications. The 8169A covers the wavelength range 1400 nm to 1640 nm. The Agilent HP 8169A Polarization Controller with Option 020 has 2x pigtailled fiber WITHOUT factory installed connectors.

Click the PDF Specification for further information.

Read moreShow less

Request Pricing

5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
8169A_020
Brand:
Description

Agilent / HP 8169A with option 020 Polarization Controller

Specifications

  • Operating wavelength range: 1400 nm to 1640 nm
  • Insertion loss: < 1.5 dB
  • Return loss: > 60 dB

Additional Information

  • Option 020: Pigtailed fiber ports
  • Extinction ratio: > 45 dB (1530 nm to 1560 nm), > 40 dB (1470 nm to 1570 nm), > 30 dB (1400 nm to 1640 nm

Specification DataSheet

 Agilent_8169A_11896A_spec.pdf
