Yokogawa AQ2200-231 Optical Sensor Head Optical Measurement

The Yokogawa AQ2200-231 Optical Sensor Head is a high-precision measurement device designed for longwave and large-diameter optical sensing applications. Operating within a wavelength range of 800 nm to 1700 nm, it features a 5 mm InGaAs detector, making it ideal for spatial light and multi-core fiber measurements. When integrated into AQ2200 series frame controllers via the AQ2200-201 Interface Module, it enables real-time waveform display, stability measurement, and automated data logging, enhancing efficiency in optical power characterization. With its low polarization dependence, the AQ2200-231 ensures high measurement accuracy, making it an essential tool for fiber optic research, telecommunications, and optical component testing.
Read moreShow less
USD $2,095.00
5 1
,
5/ 5
Yes, we have 3 in stock
Condition
Used
Reference:
AQ2200-231
Brand:
Description

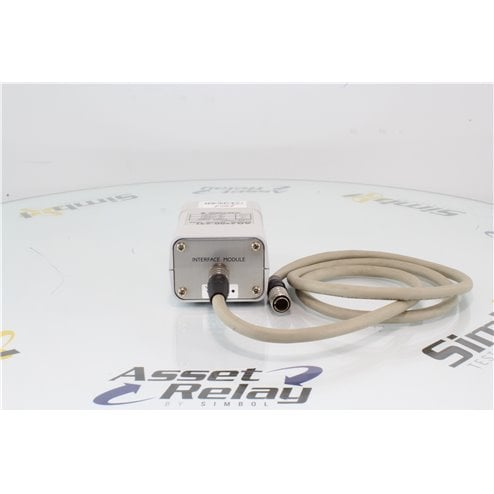

Yokogawa AQ2200-231Optical Head. Needs a AQ2200-201 interface module to operate

Specifications of AQ2200 231

  • Detector type: InGaAs, 5 mm
  • Wavelength range: 800 to 1700 nm
  • Power range CW Light only: -90 to +10 dBm
  • Power range Chop Light: -90 to +7 dBm
  • Applicable fiber: < 100/140 µm (SI), NA <0.3
  • Uncertainty (reference condtion): ± 2 %
  • Total uncertainty: ± 3.5% ± 50 pW
  • Polarization dependence: 0.025 dBp-p
  • Noise Level: < 50 pW
  • Averaging time: 100 µs

Optical interface connector AQ9335C connector adapter

Read moreShow less
Product Details
AQ2200-231
