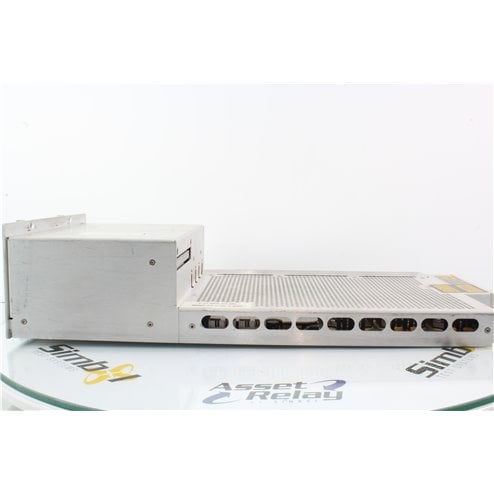

Agilent (HP/Keysight) 81680A Tunable Laser Source (TLS) (S+C band) opt.72

Agilent 81680A Option 072 Tunable Laser Source

Specifications

• Wavelength Range: 1460 to 1580 nm
• Wavelength Resolution: 0.1 pm (12.5 MHz at 1550 nm)
• Minimum output power:
  • Output 1 (Low SSE): > - 6 dBm (1520 to 1570 nm)
  • Output 2 (High Power): > +5 dBm (1520 to 1570 nm)
• Built-in Optical Attenuator (option 003) is standard on this unit
• Option 072: polarization maintaining fiber, angled contact output connector
• Spectral Linewidth: 100 kHz (coherent control off); > 50 MHz (1460-1580 nm, at maximum flat output power, coherent control on)
• Optical Power Stability: ± 0.01 dB
• Connector Type: Panda-Type, Angled Contact
• Wavelength Accuracy: ± 0.01 nm

Additional Information

The Agilent Tunable Laser modules with their built-in wavelength control loop push the performance limits. As they are all mode-hop free tunable with continuous output power, they qualify for the test of the most critical DWDM components.
