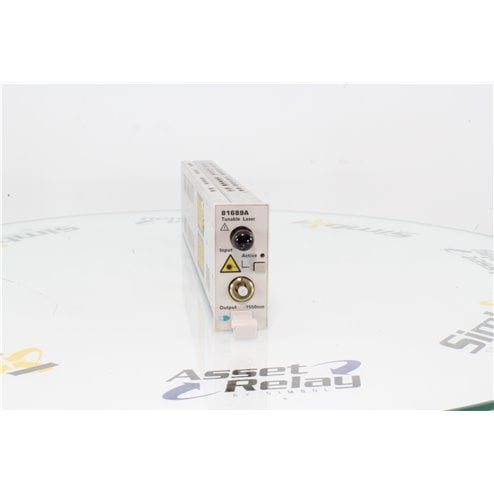

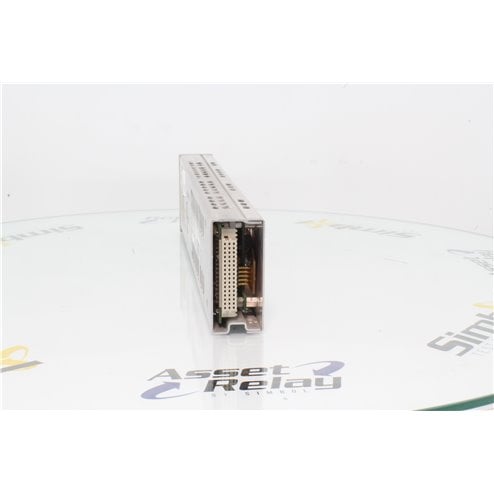

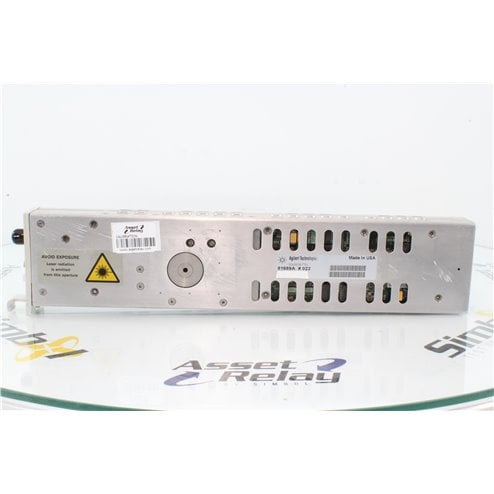

Keysight Agilent 81689A Option 022 Compact Tunable Laser: Precision and Versatility with SMF Fiber
The Keysight Agilent 81689A Option 022 Compact Tunable Laser is a state-of-the-art solution for professionals requiring exceptional precision in optical testing. Built for a wide range of applications, this laser delivers consistent performance across various optical systems, making it an essential tool for both lab-based and field testing environments. Specifically designed for telecommunications, photonics, and advanced research, this laser is highly adaptable, ensuring reliable and accurate results in even the most demanding scenarios.
The inclusion of Option 022 equips the 81689A with single-mode fiber (SMF) and an angled connector, which minimizes back reflections and optimizes performance. This feature is particularly beneficial for high-precision applications, where signal integrity is critical. Whether you're testing fiber optic communication systems, conducting DWDM testing, or characterizing optical components, the Keysight Agilent 81689A Option 022 provides the flexibility and accuracy you need.
Key Features & Benefits of the Keysight Agilent 81689A Option 022 Compact Tunable Laser
- SMF Fiber with Angled Connector (Option 022): The inclusion of single-mode fiber (SMF) ensures stable signal transmission, while the angled connector minimizes back reflections, significantly improving measurement accuracy in polarization-sensitive applications.
- Wide Wavelength Range: The 81689A covers a broad wavelength range from 1525 nm to 1575 nm, providing the versatility required for various optical testing needs, including DWDM networks, photonic system testing, and optical component analysis.
- Precise Wavelength Resolution: With a resolution of 0.01 nm (1.25 GHz at 1550 nm), the laser ensures ultra-precise wavelength adjustments, making it suitable for testing applications that demand fine-tuning and accuracy.
- High Output Power: The laser delivers an output power greater than +6 dBm over the 1525-1575 nm range, ensuring that your tests are conducted with enough power for both high-sensitivity and high-power optical setups.
- Compact Design with Advanced Capabilities: Despite its powerful performance, the 81689A is designed to be compact and portable, making it easy to integrate into any lab or testing environment. Its small footprint is perfect for labs with limited space, and it is also suitable for field testing applications.
- Stable and Consistent Output: The laser boasts impressive power stability of ±0.03 dB, ensuring that results are repeatable and reliable even over extended testing periods.
- Low Noise and Narrow Spectral Linewidth: The laser’s narrow spectral linewidth of 20 MHz minimizes noise, allowing for high-resolution measurements in spectroscopy, interferometry, and other applications that require clean, detailed results.
- Fully Calibrated for Immediate Use: Each Keysight Agilent 81689A Option 022 laser is fully calibrated before shipping to OEM specifications. It includes a Calibration Certificate, Calibration Label, and full Calibration Data to ensure your device is ready for accurate and reliable use right out of the box.
This tunable laser is designed for a wide array of applications, including fiber optic communication system testing, DWDM analysis, and the characterization of optical components. Its advanced capabilities and reliable performance make it the preferred choice for engineers and researchers working in high-precision environments.
Technical Specifications of the Keysight Agilent 81689A Option 022 Compact Tunable Laser
| Specification |
Details |
| Wavelength Range |
1525 nm to 1575 nm |
| Wavelength Resolution |
0.01 nm (1.25 GHz at 1550 nm) |
| Output Power |
> +6 dBm (1525-1575 nm) |
| Wavelength Accuracy |
±0.3 nm |
| Power Stability |
±0.03 dB |
| Spectral Linewidth |
20 MHz |
| Integrated Optical Attenuator |
Option 022: SMF Fiber, Angled Connector |
| Calibration |
Includes Calibration Certificate, Label, and Data |
Why Choose the Keysight Agilent 81689A Option 022 Compact Tunable Laser?
The Keysight Agilent 81689A Option 022 Compact Tunable Laser stands out for its precision, versatility, and advanced features that make it an essential tool for optical testing. The inclusion of single-mode fiber (SMF) and an angled connector (Option 022) ensures improved signal integrity and minimizes back reflections, making this laser ideal for polarization-sensitive applications.
Its wide wavelength range, fine tuning resolution, and stable output power make it suitable for both high-power and sensitive optical tests. The compact design allows it to be seamlessly integrated into any lab setup, and it is also portable enough for on-site and field testing scenarios.
Each laser is fully calibrated before shipping to OEM specifications, meaning that the device is ready to provide accurate and reliable results immediately. With its Calibration Certificate, Calibration Label, and full Calibration Data, you can trust the performance of the 81689A for any optical testing requirement.
Choose the Keysight Agilent 81689A Option 022 Compact Tunable Laser for high-performance, precision, and stability in all your optical testing applications.
Download 81689A Specification Sheet
