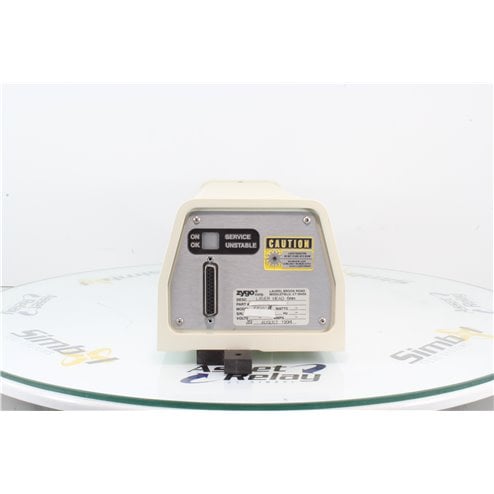

Zygo 7701C/E 6mm HeNe Laser Head

The Zygo 7701C/E 6mm HeNe Laser Head is a high-precision helium-neon laser source designed for interferometry and metrology applications. It features >300 µW output power, a 6 mm beam diameter, and stable beam pointing (<0.1 arc sec/°C). With 0.01 ppm wavelength stability over 24 hours and a fast startup time (<10 sec typical, 70 sec max), it ensures high accuracy in precision measurement systems.
Read moreShow less

Request Pricing

5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
7701C/E
Brand:
Description
Zygo 7701 6mm Laser Head

Specifications

  • Output Power: >300 µW
  • Beam Diameter: 6 mm
  • Feet: Narrow
  • Usable Beam Length: 2 m

Additional Information

  • Time from Turn On to Laser Light: <10 sec Typical, 70 sec max.
  • Beam Pointing Stability: <0.1 arc sec/°C
  • Operating Temperature: 10 to 30°C
  • Weight: 12 lb / 5.5 kg
  • Vacuum Wavelength Stability: 0.01 ppm/24 hour

Read moreShow less
Product Details
7701C/E
