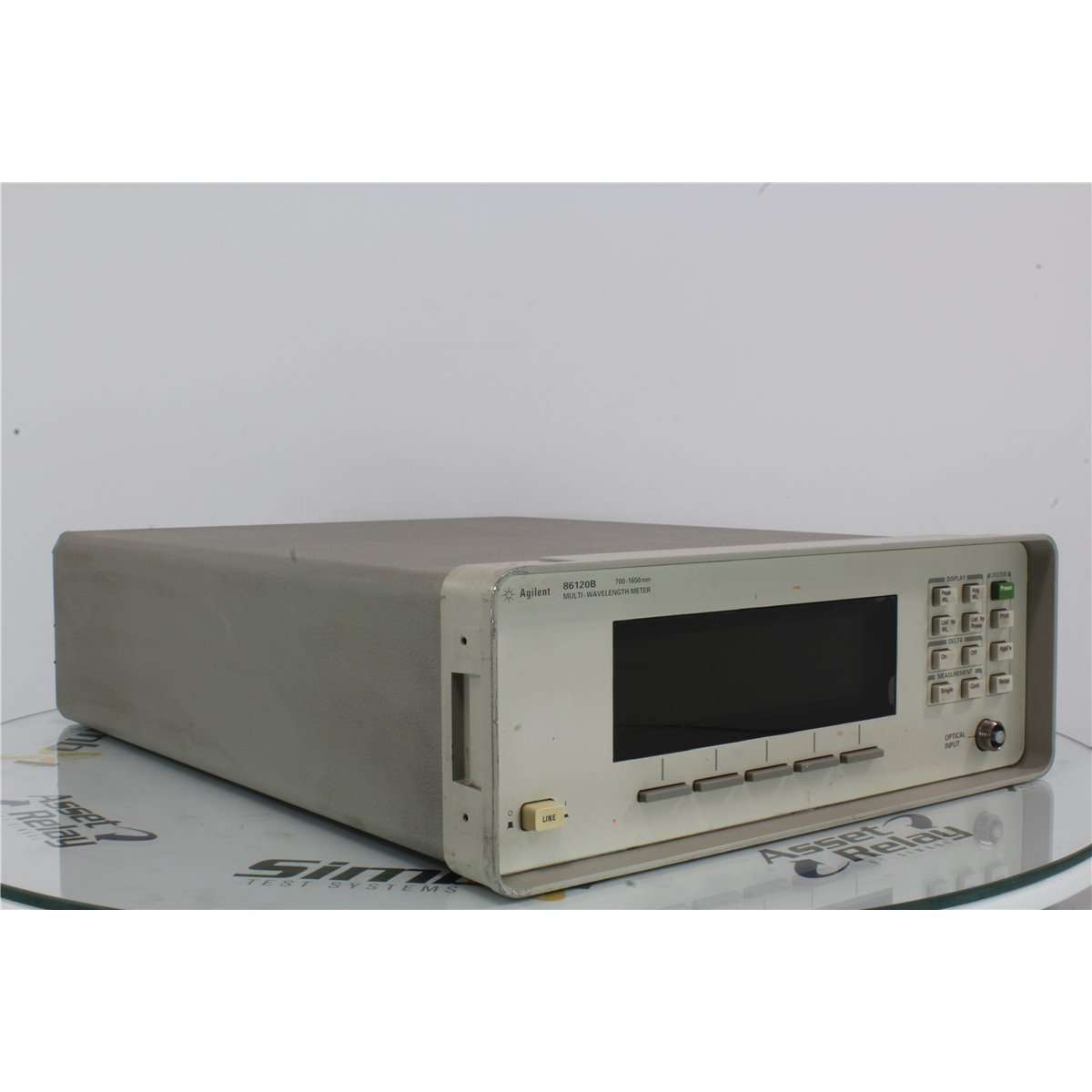

Agilent (Keysight/HP) 86120B Opt 21 Wavemeter

The Keysight 86120B Multi-Wavelength Meter is a Michelson interferometer-based instrument for precise wavelength and optical power measurements over 700–1650 nm, supporting up to 100 laser lines with ±3 ppm accuracy. It offers fast wavelength scanning (<1 sec), high laser input power (10 dBm, safe up to 18 dBm), and a built-in HeNe laser standard for real-time calibration, ensuring accurate DWDM and Fabry-Perot laser testing.

PDF Specification
Read moreShow less
USD $5,636.00
5 1
,
5/ 5
Yes, we have more than 5 in stock
Condition
Used
Reference:
86120B_21
Brand:
Description

All our inventory is accurate and updated in real-time. If this website says we have the item in stock, we do.

Item : 86120B

Calibration type : Premium Calibration included

  • Wavelength Range: 700-1650 nm
  • Wavelength Absolute Accuracy: ±3 ppm
  • Max Input level: +18 dBm
  • Optical Input: 9/125 um single-mode fiber
  • Option 021: Straight (non-angled) Contact Interface-PC
  • Display Resolution: 0.01 dB
  • Linearity: ±0.3 dB (1200 to 1600 nm)
  • Polarization Dependence: ±1.0 dB (700 to 1650 nm)
  • One Optical connector (81000 series) needed, sold separately.

Payment : All orders are prepaid. We accept wire transfers or Paypal. For orders above 3000 USD with Paypal, administrative fees will be added.

Warranty : 30-day warranty.

Shipping : Worldwide shipping. Contact us for a shipping quote.

Shipping terms : EXW. Buyer is responsible for any duties or taxes.
We can also ship on your preferred carrier account.

Warranty fine print : Note that this is not a Right of Return.  We will only accept a return if the unit is defective within the warranty period.  Return shipping is at your cost and prepaid. Warranty shall become null and void should it be determined that the equipment was subjected to undue abuse, involved in any mishap, incorrectly wired and/or used/maintained in a manner contrary to the manufacturer's published instructions. Warranty period starts upon reception of the item at the delivery place.
