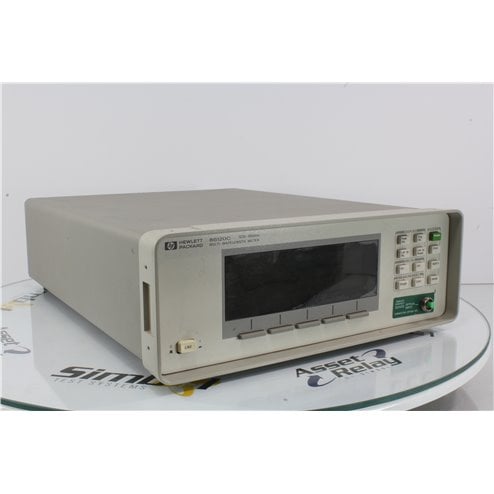

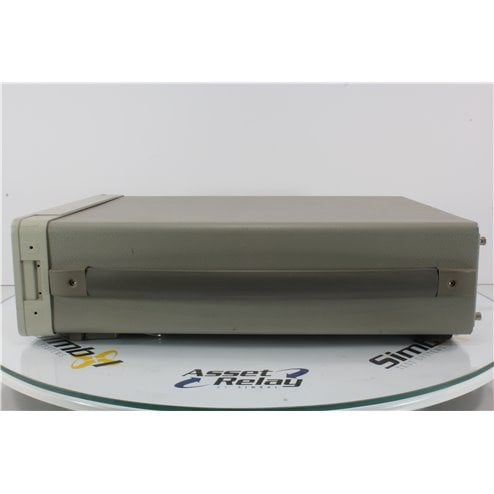

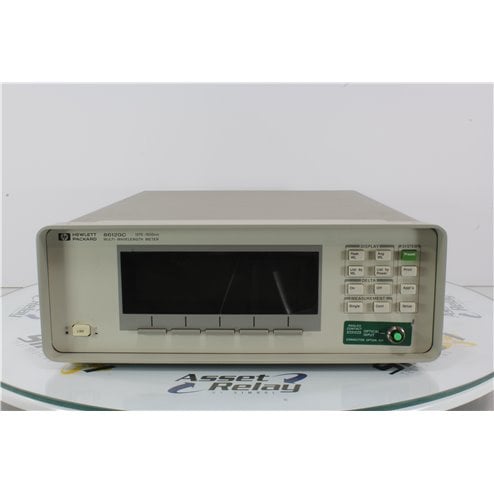

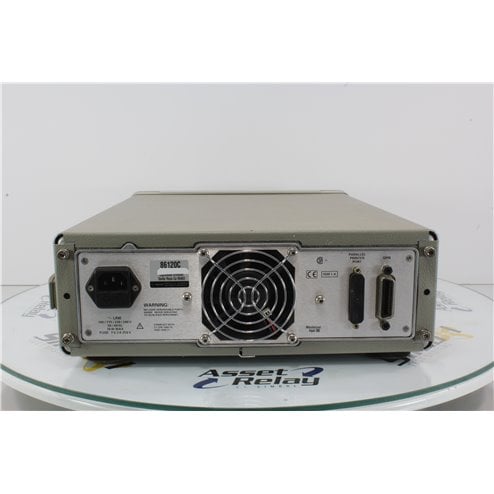

Agilent HP 86120C Option 022 Multi-Wavelenght Meter

Agilent HP 86120C Option 022 Multi-Wavelength Meter: Precision and Performance with Angled Contact Interface-APC

The Agilent HP 86120C Option 022 Multi-Wavelength Meter is a highly accurate optical measuring instrument designed for high-precision applications requiring the measurement of wavelength and optical power. Built with advanced Michelson interferometer technology, this model excels in multi-laser line environments, particularly in Dense Wavelength Division Multiplexing (DWDM) systems and Fabry-Perot lasers. With Option 022, which includes the Angled Contact Interface-APC, the meter is optimized for low reflectivity, ensuring exceptional signal integrity in demanding optical testing environments.

Covering a broad wavelength range of 1270 nm to 1650 nm, the Agilent HP 86120C Option 022 provides accurate, repeatable results across a variety of optical applications. It is perfect for professionals working in telecommunications, research, and advanced optical manufacturing where precision and reliability are crucial.

Features and Benefits of the Agilent HP 86120C Option 022 Multi-Wavelength Meter

• High Accuracy and Precision: The Agilent HP 86120C delivers a wavelength accuracy of ±2 ppm, ensuring exceptional performance for precise measurements of closely spaced laser signals.
• Fast Measurement Cycle: The meter completes wavelength scans in under 1 second, enabling quick data collection and making it ideal for high-speed testing scenarios.
• Wide Wavelength Range: Supporting a wavelength spectrum from 1270 nm to 1650 nm, this device is versatile and suited for multiple laser sources and optical applications.
• Multi-Laser Line Capability: With the ability to handle up to 200 laser lines at once, the meter ensures accurate measurements even in dense, multi-laser environments like DWDM systems.
• Option 022 - Angled Contact Interface-APC: The angled connector interface (Option 022) is optimized to reduce optical reflectivity, providing superior return loss for improved measurement accuracy in environments where minimizing reflections is critical.
• Pre-Shipment Calibration: The Agilent HP 86120C Option 022 is calibrated to OEM specifications before shipping. This includes a Calibration Certificate, Calibration Label, and Calibration Data, ensuring your device is ready for immediate, accurate use.

Designed for professionals who demand fast, accurate, and repeatable results, the Agilent HP 86120C Option 022 Multi-Wavelength Meter is a reliable solution for testing high-density optical networks. Its advanced features, such as a wide wavelength range and multi-laser line capability, make it the preferred choice for experts in telecommunications and optical research.

Advanced Features of the Agilent HP 86120C Option 022 Multi-Wavelength Meter

• Michelson Interferometer-Based Technology: The Agilent HP 86120C uses advanced interferometer technology to deliver highly accurate and repeatable measurements of both wavelength and optical power.
• Clear Display and Logging Capabilities: The meter provides detailed measurements of individual laser lines and total power output, allowing users to easily monitor and log data in real-time for comprehensive analysis.
• Exceptional Input Sensitivity: The device features input sensitivity down to -40 dBm for wavelengths between 1270 and 1600 nm, and -30 dBm for wavelengths between 1600 and 1650 nm, ensuring even weak signals are measured accurately.
• Robust Input Return Loss: With an impressive return loss of 50 dB, the Option 022 (APC interface) minimizes reflections and improves signal integrity during measurements.
• Support for Multiple Laser Inputs: The Agilent HP 86120C can measure up to 200 laser lines simultaneously, making it ideal for complex optical systems requiring multi-laser line measurements.

The Agilent HP 86120C Option 022 offers advanced performance and ease of use with its user-friendly controls, clear graphical display, and flexible connectivity options. Whether in a research lab, telecommunications facility, or production line, this multi-wavelength meter ensures you get the speed, accuracy, and precision needed for the most demanding optical measurements.

Agilent HP 86120C Option 022 Multi-Wavelength Meter Specifications

The Agilent HP 86120C Option 022 Multi-Wavelength Meter is the ultimate tool for optical testing, offering precision, speed, and reliability across a wide range of applications. With its pre-shipment calibration, you can begin testing with confidence from the moment your device arrives.
