New Focus 1580 12-GHz Vis Photodetector
USD $499.00
Santec PDA8-0010 8 port Photo Detector
USD $125.00

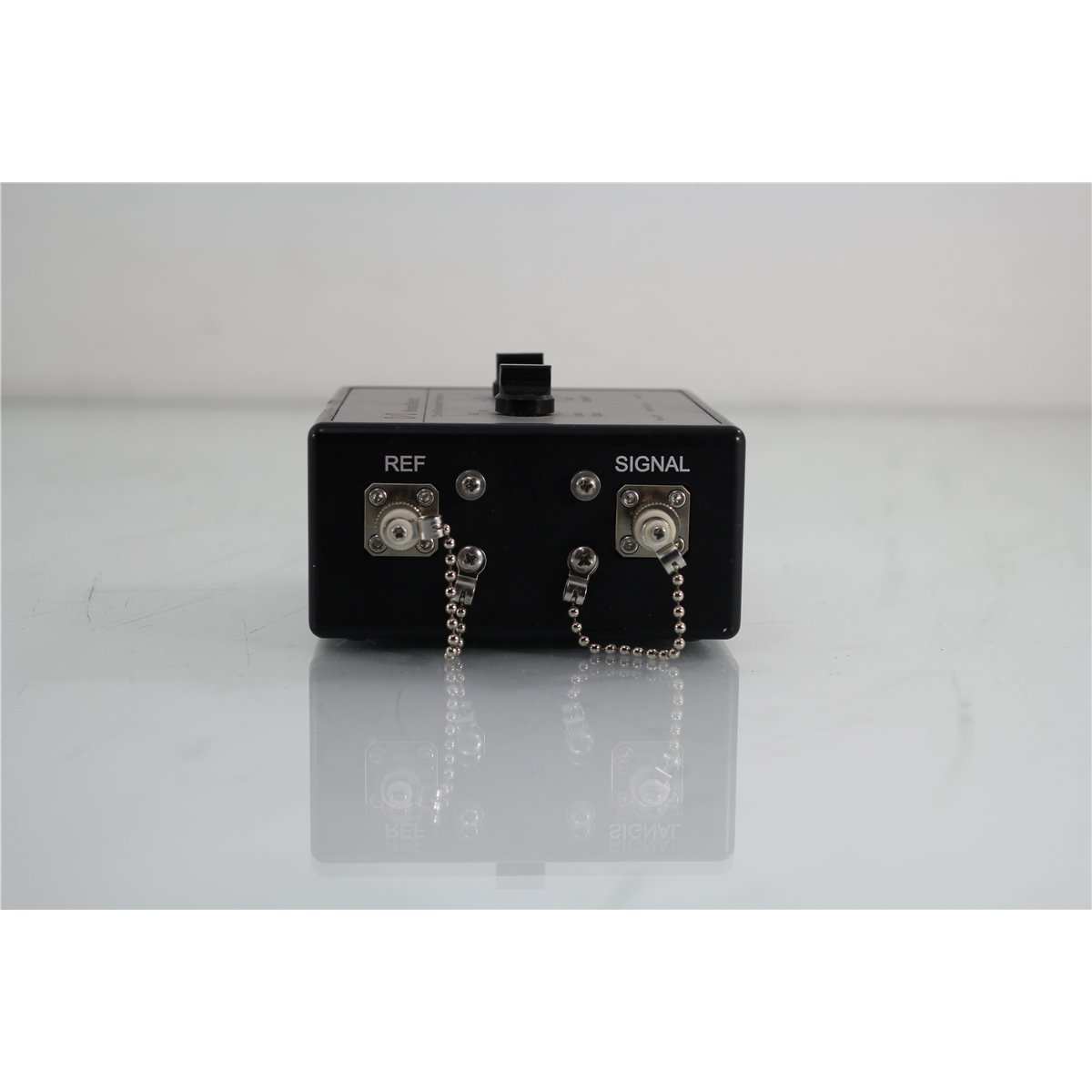

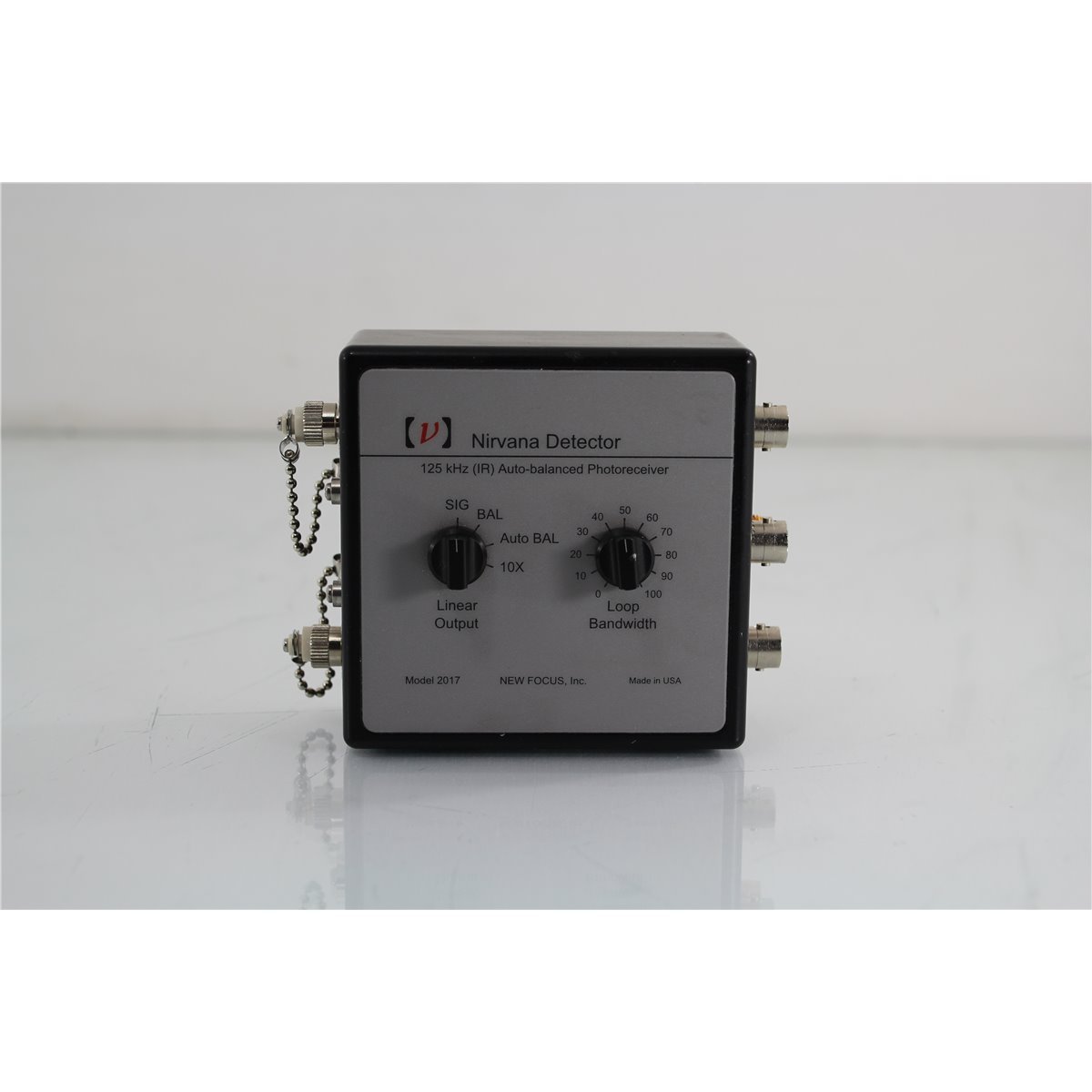

NewFocus Nirvana 2017 Auto Balance rec.
The 2017 Nirvana Auto-Balanced Optical Receiver can cut the effects of laser noise by 50 dB, making even very small signals easy to see. The 2017 has a 800-1700 nm wavelength range. In spectroscopy, ellipsometry, or heterodyne-detection experiments, these receivers can yield shot-noise-limited performance without the need for lock-in amplifiers or high-frequency modulation.
Read moreShow less
USD $795.00
Yes, we have
1 in stock
Reference:
2017
Brand:
New Focus (Newport) Nirvana 2017 Balanced Optical Receiver
Read moreShow less
New Focus 12-GHz Vis range Photo receivers
- Wavelength Range 800-1700 nm
- 3-dB Bandwidth DC-125 kHz
- Rise Time 3us
- Maximum Conversion Gain 1x10exp6 V/W (inverting)
- Typical Maximum Responsivity 0.4 A/W
- Transimpedance Gain -1x10exp6 V/A
- Output Impedance 100 oHm
- Minimum NEP 3 pW/
- cw Saturation Power 0.5 mW
- Detector Material GaAs
- Power Requirements ±15 V
- Optical Input FC
