Agilent 81610A Optical Return Loss Meter
Agilent 81610A Optical Return Loss Meter

Agilent 81610A Optical Return Loss Meter

HP 81534A-001 Optical Return Loss module
Agilent 81613A Return Loss Module

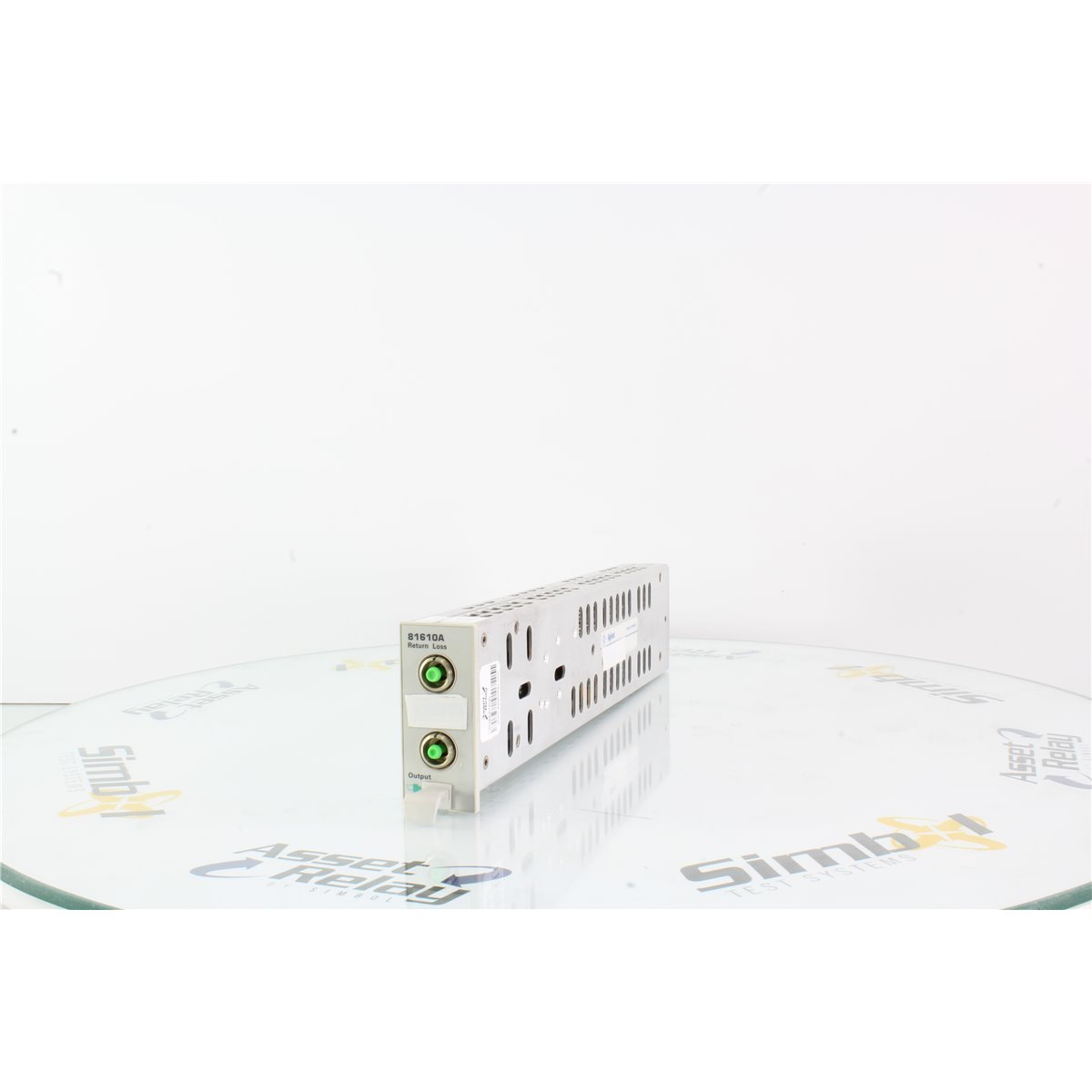

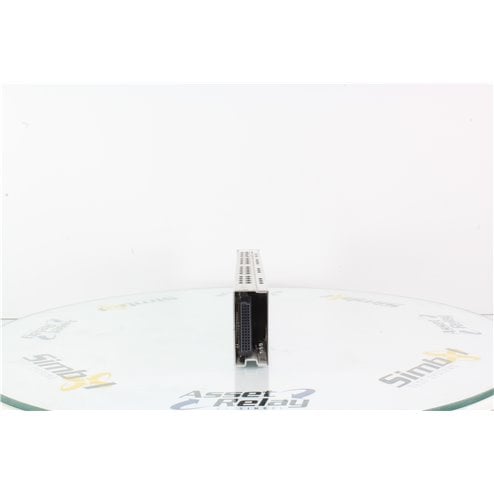

The Agilent 81610A is a Return Loss plug-in module that fit the 8163, 8164 and 8166 multichannel mainframe series. The Agilent HP 81610A connects to SMF 9um singlemode fiber with a wavelength range of 1250nm to 1640nm. This module must be used in conjunction with an external source.

Click the PDF Specification for further information.


Read more
5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
81610A
Brand:
Agilent
Description

Agilent 81610A Optical Return Loss meter module.

Fits 8163 and 8164 Lightwave measurement mainframes.

Specifications at glance for the 81610A

  • Source: External input
  • Sensor element: InGaAs
  • Wavelength 1250 nm to 1640 nm
  • Dynamic range: 70 dB
  • Singlemode 9/125 um
  • Max input power 10 dBm
  • Min input power 0 dBm
  • Total uncertainty:  add +/- 0.2 dB to relative uncertainty

Angled interface connectors, reference cable 81610CC  and its connector interface 81000SI (DIN47256/4108) are not included.
