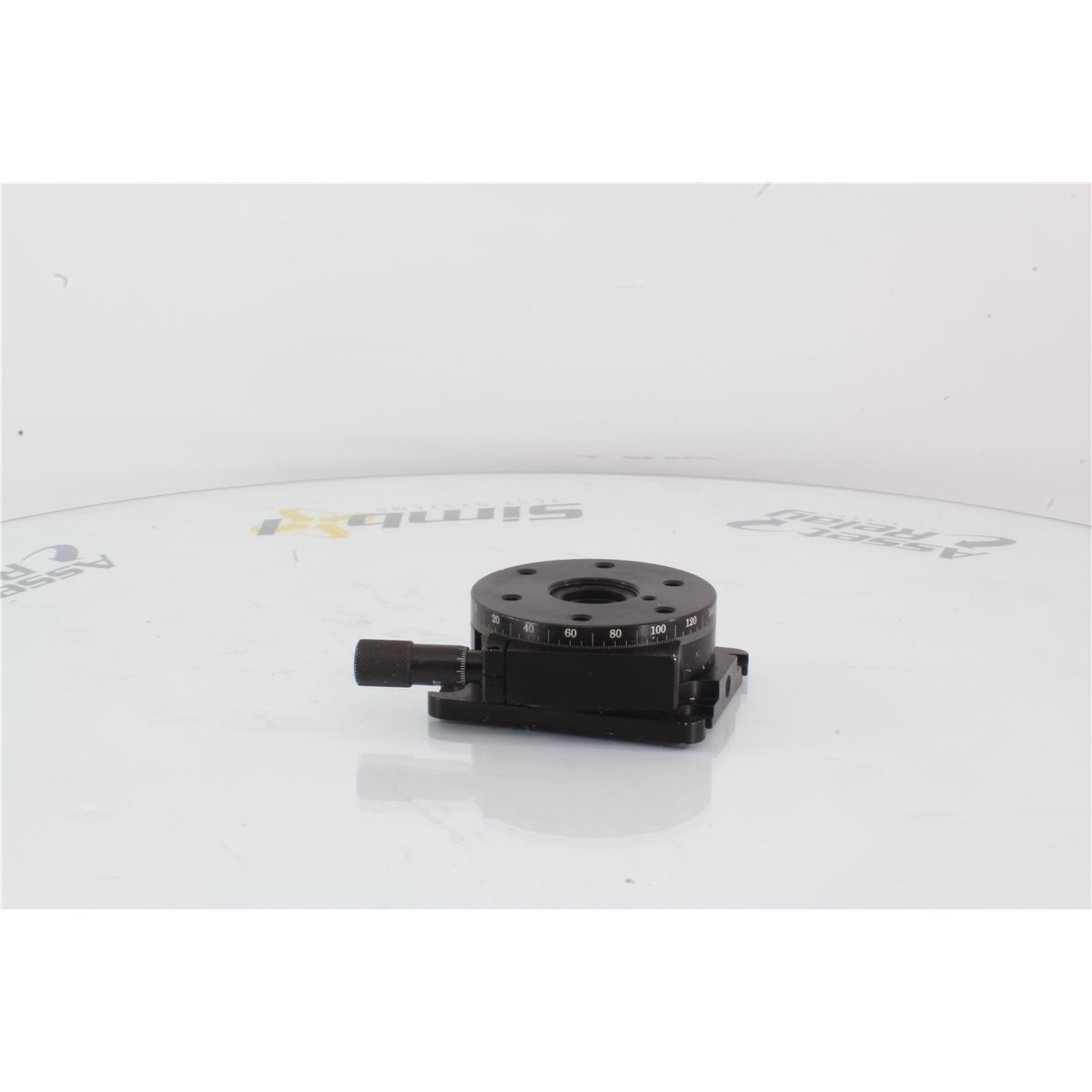

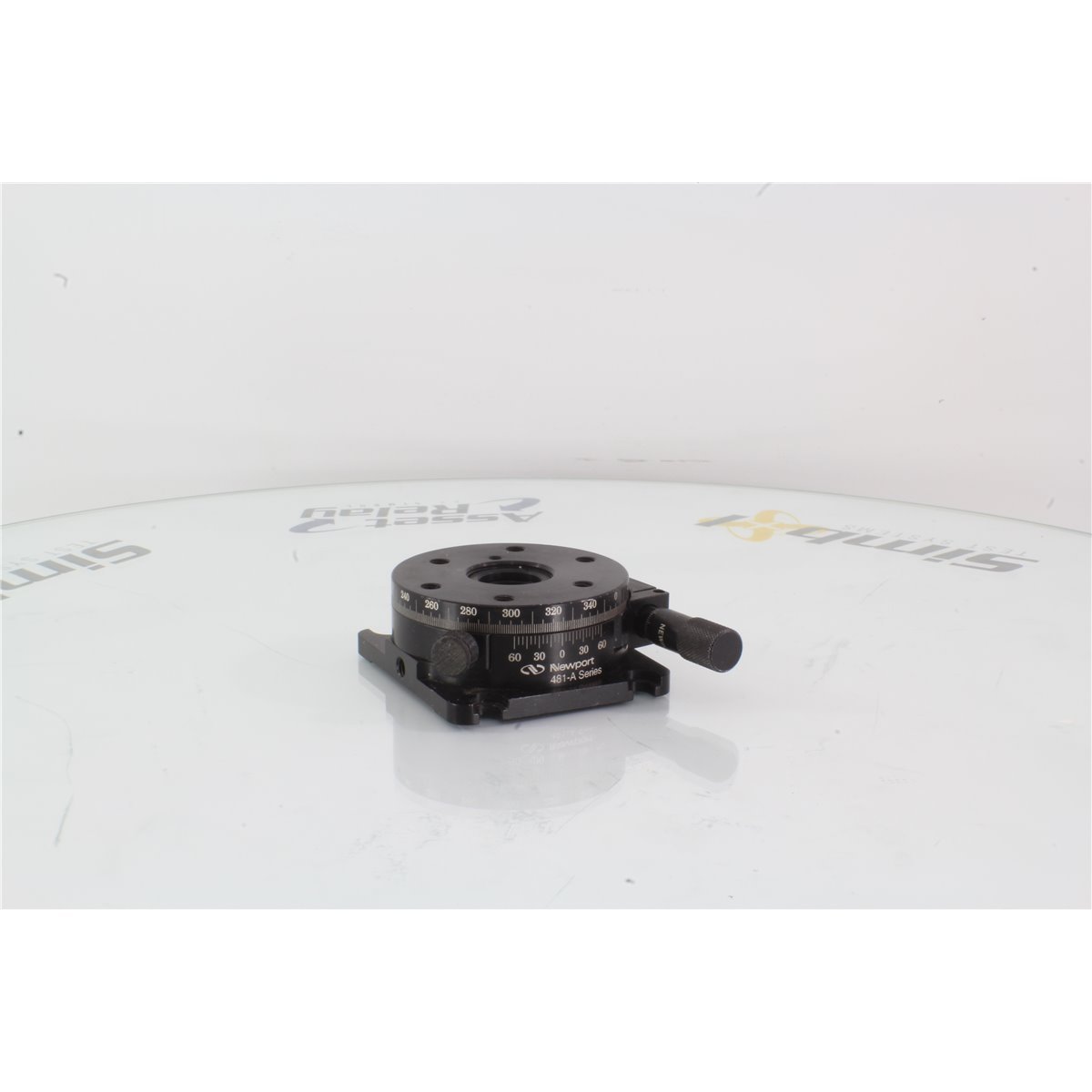

Newport 481-A Rotation Stage
The Newport 481-A Rotation Stage is a high-precision rotary stage designed for fine angular adjustments. It offers 360° coarse rotation and 5° fine tuning, controlled by a micrometer actuator for precise positioning. The stage features engraved scale markings for accurate alignment and a thumbscrew lock to secure the desired angle. Its 1-inch threaded aperture allows easy mounting of optical components, making it ideal for applications such as polarization control and filter rotation.
Read moreShow less
USD $197.00
Yes, we have
2 in stock
Condition
Used
Reference:
481-A
Brand:
Newport 481-A Rotation Stage
Read moreShow less
The Newport Rotation Stage 481-A is ideal for fine-tuning the angular orientation of any component after rotating it to an approximate angle. An inner stage rotates 360 degrees in a precision bored bushing which locks with a sidemounted thumbscrew. The outer stage is a high resolution ,tangentially driven design. Scale markings indicating every degree and a vernier with 5 arc min markings are engraved on the side of the stage. It fits on tables, breadboards and to posts.
It includes two rings and s solid aperture insert with a centered clearance hole for on-axis mounting of components such as post holders.
