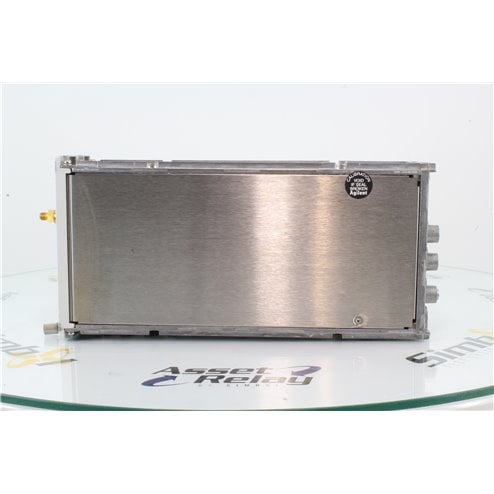

Agilent 86107A Plug in module opt 010

Agilent HP 86107A Precision Time Base Reference 2.5/10 GHz Module DCA

Key Features and Functions

• Enable precision jitter analysis of electrical signals at rates above 10 Gb/s and optical signals at rates above 20 Gb/s with this precision timebase reference module
• View input signals with characteristic levels of 0.2-1.5 Vpp and a trigger range of 2 to 48 GHz (depends on options)
• Select your electrical input: 3.5 mm male (2.4 mm male for frequencies > 25 GHz bandwidth)
• Make better measurements with < 100 fs RMS (for frequencies > 4 GHz) and < 280 fs RMS (for frequencies < 4 GHz)
