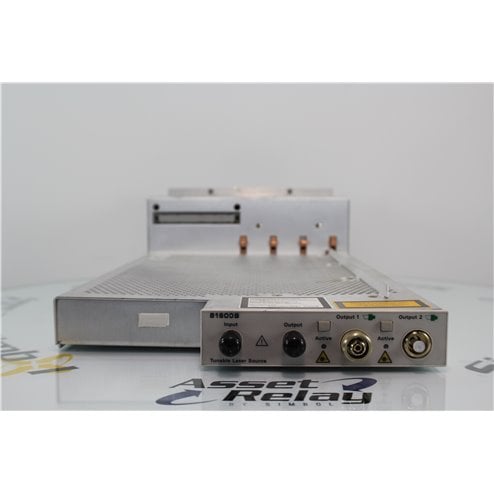

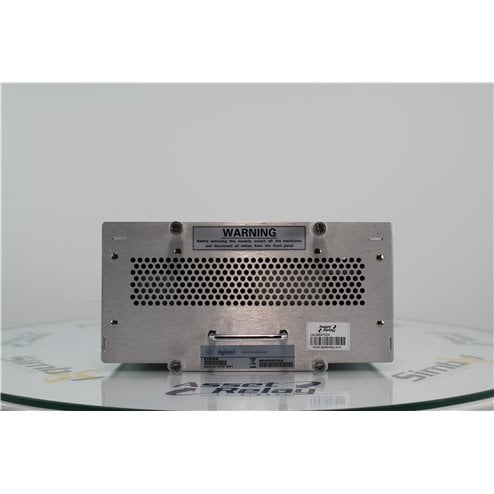

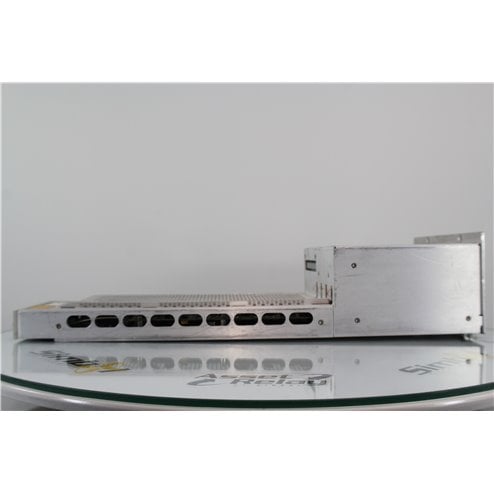

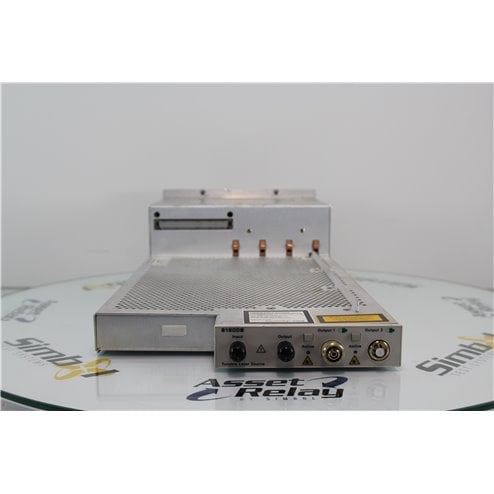

Agilent 81600B Tunable Laser(S+C+L band)

The HP Agilent 81600B option 201 and option 072 is a Polarization Maintaining Fiber (PM) fibered Tunable Laser (TLS) with built-in wavelength control. It is mode-hop free with continuous output power making it suitable for critical DWDM component testing. The 81600B option 201 covers the wavelength range 1455 nm to 1640 nm. The Agilent HP 81600B has 2 outputs; one for low SSE and one for high power.

Many angled connectors are available for this TLS.

Click the PDF Specification for further information.

Read more
5 1
,
5/ 5
Out-of-Stock
Condition
Used
Reference:
81600B72201
Brand:
Description

Agilent 81600B Tunable Laser Source with options 072 and 201

Specifications at a glance for the 81600B

  • Wavelength Range: 1455 nm to 1640 nm
  • Wavelength Resolution: 0.1 pm, 12.5 MHz at 1550 nm
  • Optical Output Level: > -7 dBm (1455 nm –1640 nm)

Additional Information

  • Option 072: PMF, angled contact output connector
  • Option 201: All-band Tunable Laser Source 1455 nm to 1640 nm, low SSE
  • Optical Power Stability: typ. ± 0.03 dB, 24 hours
  • Relative wavelength Accuracy: ± 10 pm, typ. ± 3.6 pm
Read more
Product Details
81600B72201
