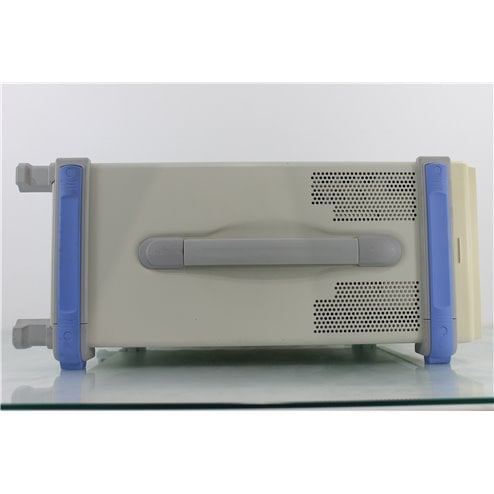

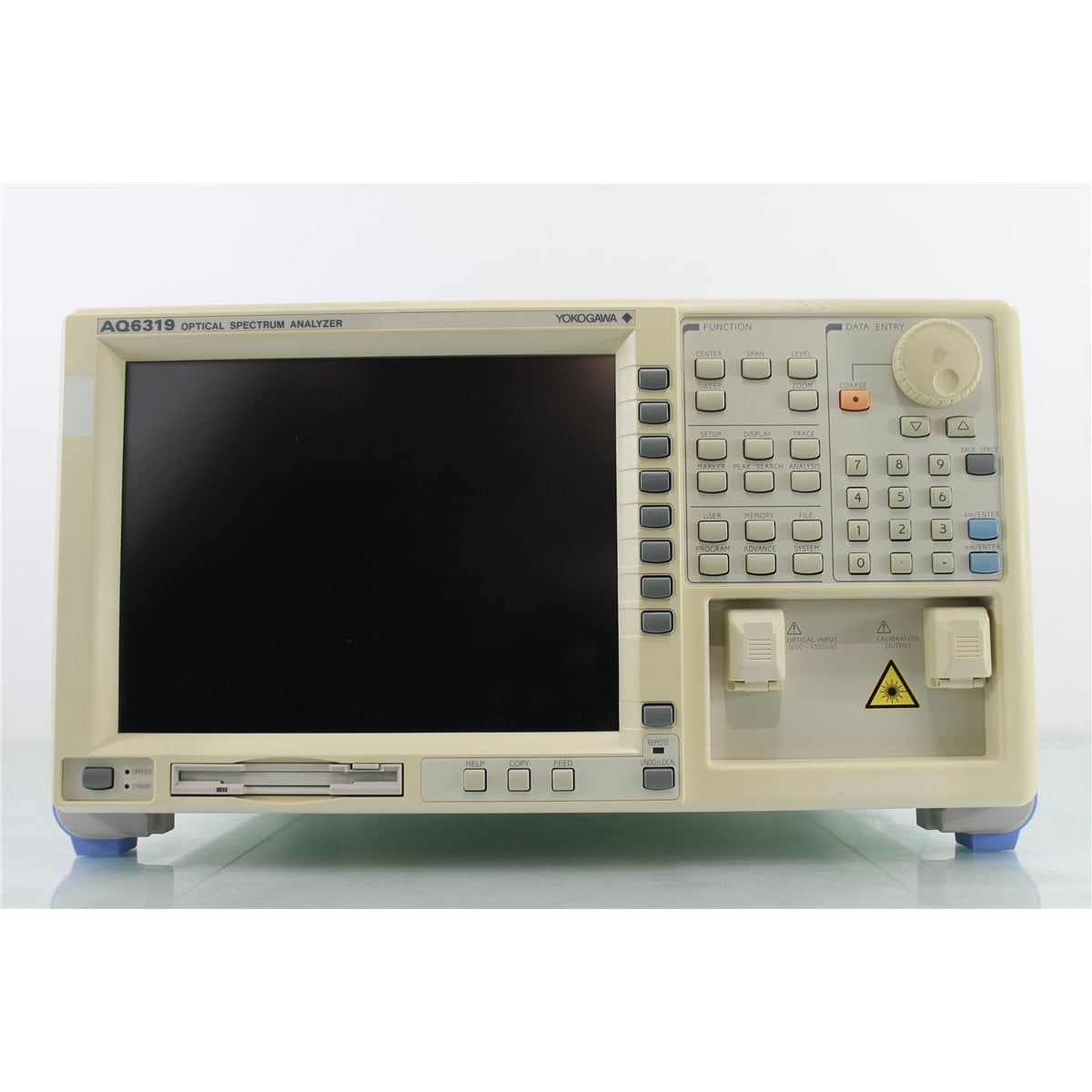

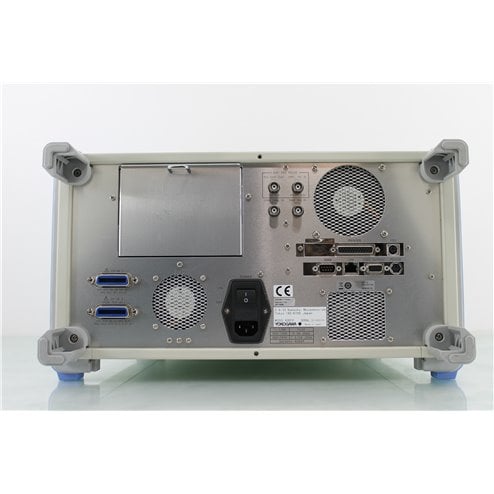

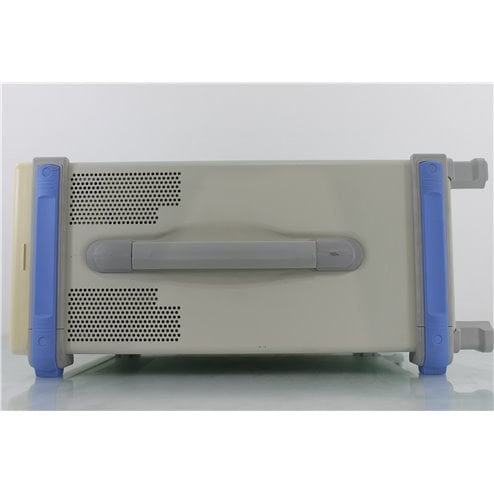

Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA)

The Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA) redefines precision in optical testing. Engineered by Ando, it offers industry-leading features like ultra-high wavelength accuracy (±10pm), exceptional resolution (10pm), and a wide dynamic range, making it ideal for dense wavelength division multiplexing (DWDM) signal analysis. This next-generation OSA is designed for fast sweeps, user-friendly interfaces, and seamless data integration, perfect for R&D, production lines, and cutting-edge photonic networks. Experience unparalleled optical performance with the AQ6319—crafted for professionals who demand precision and reliability.

Download Ando AQ6319 SpecificationsDownload Ando AQ6319 Specifications

Download Ando AQ6319 User ManualDownload Ando AQ6319 User Manual

Download Ando AQ631x comparison tableDownload Ando AQ631x comparison table

Read moreShow less
USD $21,450.00
5 1
,
5/ 5
Yes, we have 1 in stock
Condition
Used
Reference:
AQ6319
Brand:
Yokogawa
Description
Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA) - Precision Meets Innovation

The Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA) is your ultimate tool for high-precision optical spectrum analysis. Built for professionals in optical research, telecommunications, and component testing, this advanced analyzer is engineered to deliver exceptional accuracy and versatile performance. Whether you're evaluating light sources, assessing wavelength characteristics, or testing WDM devices, the AQ6315A is designed to exceed your expectations.

  • The Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA) is calibrated to OEM specifications prior to shipping.
  • Each unit includes a Calibration Certificate, ensuring traceable and reliable calibration results.
  • A Calibration Label is affixed to the device for quick verification of calibration status.
  • Detailed Calibration Data is provided to support accurate and precise measurements.

This ensures the analyzer is ready for immediate use with confidence in its performance and accuracy.

This instrument is your trusted partner for R&D, production line testing, and evaluation of next-generation photonic devices. Its reliability and precision make it indispensable for professionals in optical communication industries.

Specifications of the Ando (Yokogawa) AQ6319 Optical Spectrum Analyzer (OSA)
Specification Details
Wavelength Range 600 nm to 1700 nm
Wavelength Accuracy ±10 pm (1520 to 1580 nm)
±20 pm (1450 to 1520 nm)
±20 pm (1580 to 1620 nm)
±50 pm (full range)
Wavelength Linearity ±10 pm (1520 to 1580 nm)
±20 pm (1450 to 1520 nm)
±20 pm (1580 to 1620 nm)
Dynamic Range 40 dB (1523 nm, peak: ± 50 pm, resolution: 0.01 nm)
60 dB (1523 nm, peak: ± 100 pm, resolution: 0.01 nm)
70 dB (1523 nm, peak: ± 200 pm, resolution: 0.01 nm)
60 dB (1523 nm, peak: ± 200 pm, resolution: 0.1 nm)
Wavelength Repeatability ±2 pm
Polarization Dependency ±0.05 dB (1520 to 1620 nm)
±0.07 dB (1450 to 1520 nm)
±0.07 dB typ. (1310 nm)
Wavelength Resolution 0.01, 0.02, 0.05, 0.1, 0.2, 0.5 and 1.0 nm
Resolution Accuracy ±2 % (1450 to 1620 nm, resolution 0.1 nm)
±2.5 % (1450 to 1620 nm, resolution 0.05 nm)
±6 % (1450 to 1620 nm, resolution 0.02 nm)
Level Accuracy ±0.3 dB (1550/1600 nm, 0/-20dBm, resolution 0.02 nm)
±0.3 dB (1310 nm, 0/-20dBm, resolution 0.05 nm)
Level Linearity ±0.05 dB (-50 to +10 dBm, resolution 0.02 nm)
Sweep Time 0.5 s (100 nm range, 1001 sample points and sensitivivty set to NORM_HOLD)
1 s (100 nm range, 1001 sample points and sensitivivty set to MID)
3 s (100 nm range, 1001 sample points and sensitivivty set to HIGH 1)
15 s (100 nm range, 1001 sample points and sensitivivty set to HIGH 3)
120 s (100 nm range, 1001 sample points and sensitivivty set to HIGH 3 when chop mode is on)
Max input power +23dBm (Per channel, full span)
Calibration Calibrated to OEM specifications, includes Certificate, Label, and Data

With its comprehensive features and user-oriented design, the Ando (Yokogawa) AQ6315A Optical Spectrum Analyzer (OSA) is the perfect solution for professionals seeking precision, versatility, and reliability in optical spectrum analysis.
